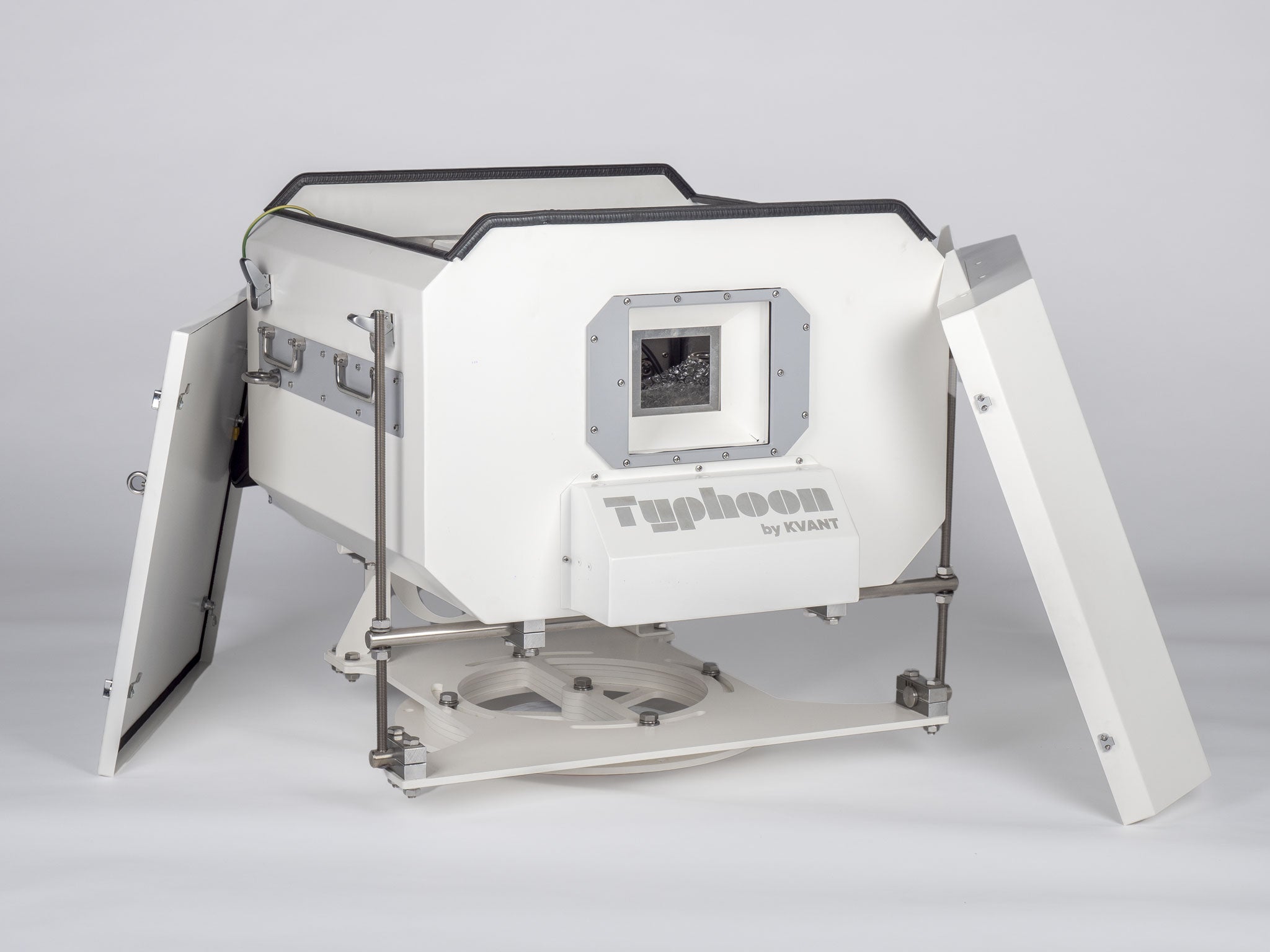

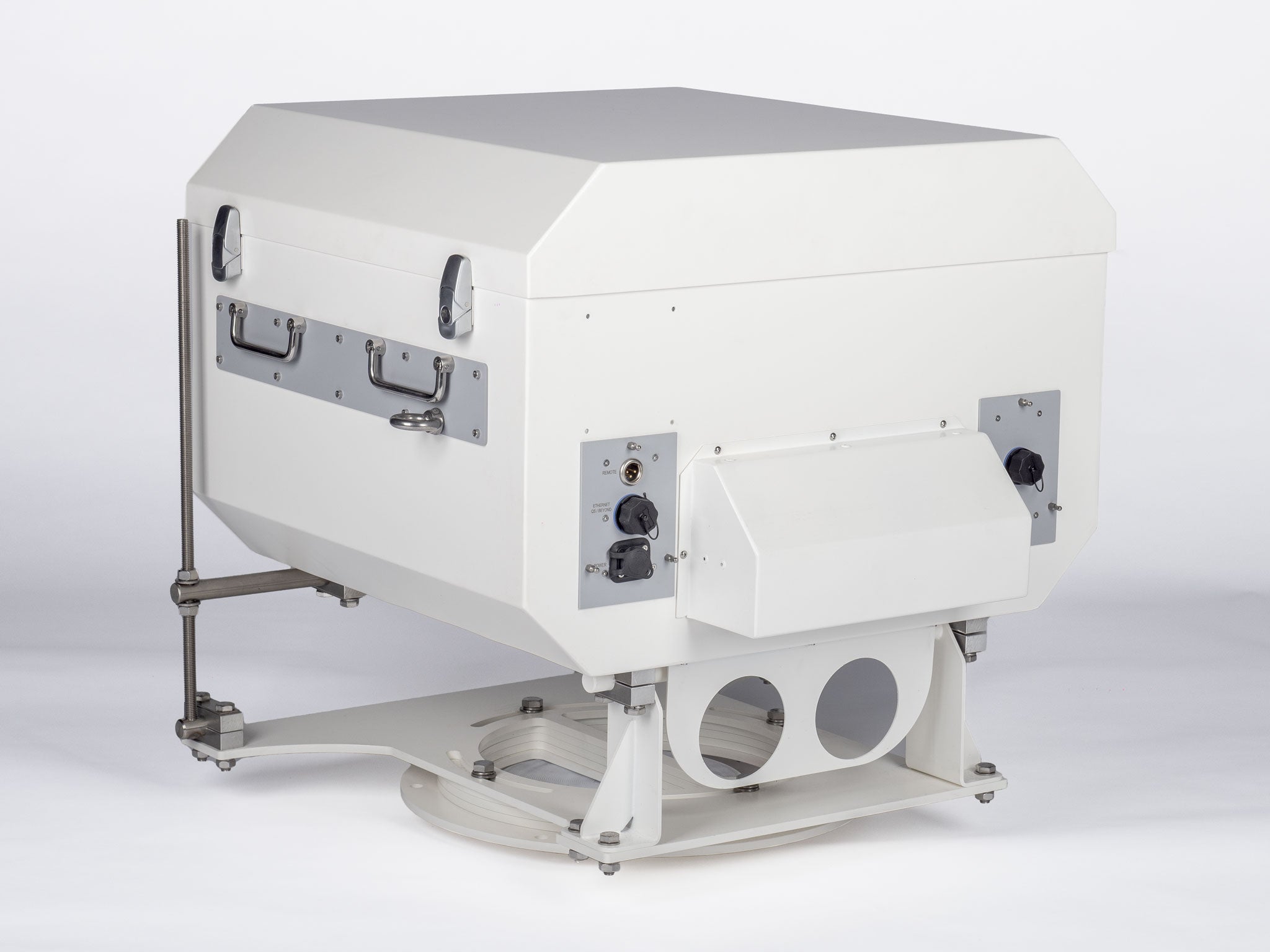

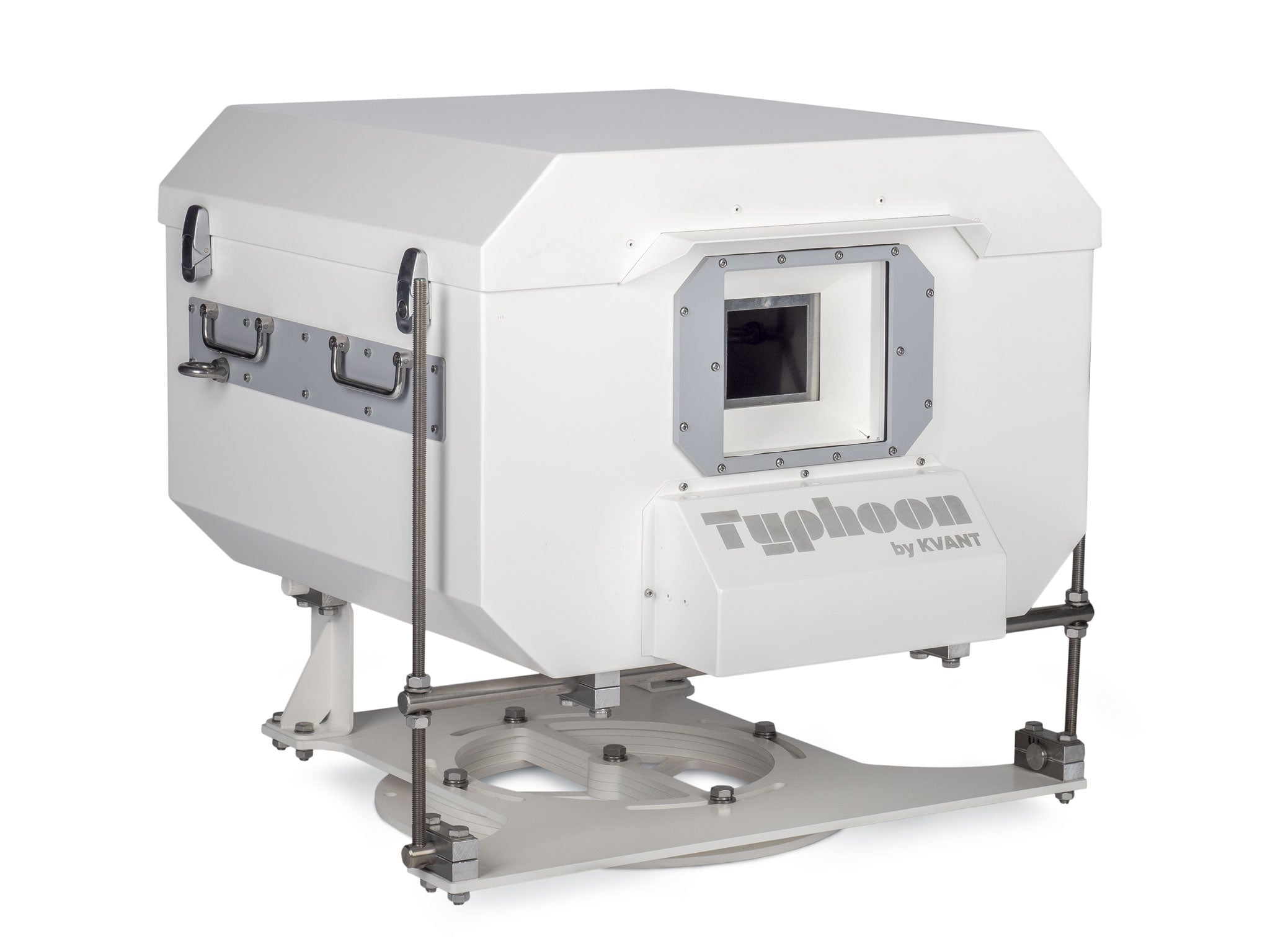

Typhoon
Monsoon Spectrum/Atom specifications
Ingress protection rating
IP65 [Certified]
Operation temperature
-20 to +35 °C
Housing colour
RAL 9010 as standard, other RAL colours on request
Laser safety
Laser Class 4 stickers
Dimensions
750 x 730 x 560 [WxHxD], mm
Shipping size
1200 x 930 x 800 [WxHxD], mm

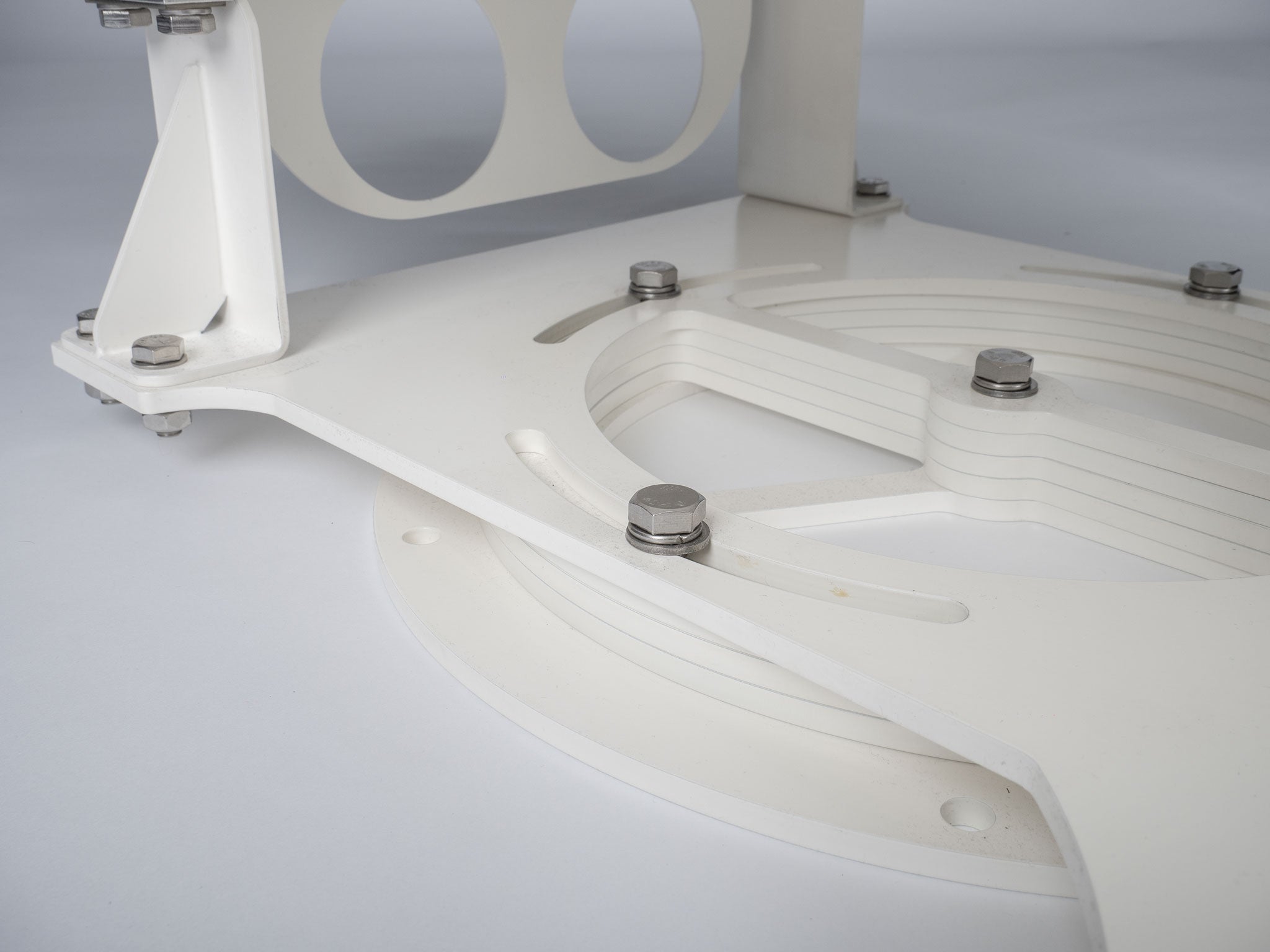

Weight enclosure/bracket
34 / 31 kg
Shipping weight
100 kg [may vary slightly upon packaging materials]

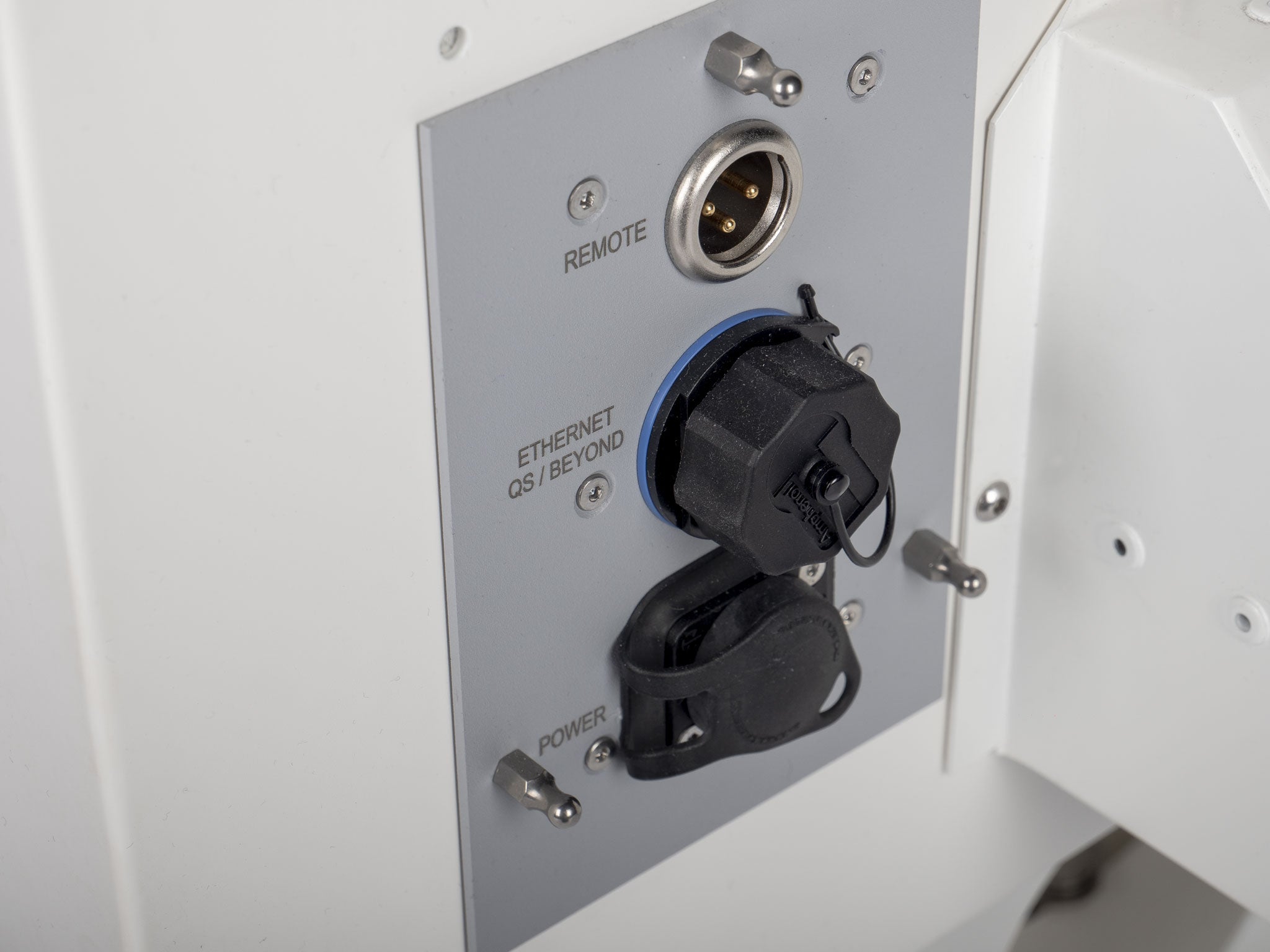

Supplied accessories
AC power cable, 3-pin XLR remote cable, Ethernet cable, 17/19mm spanner, mounting bracket
Supplied spare parts
Air-filter
Available spare parts
Aperture AR glass, air-filter
Supplied cable length
10 metres
Casing construction
Two-ply with 30-50mm inner insulation foam

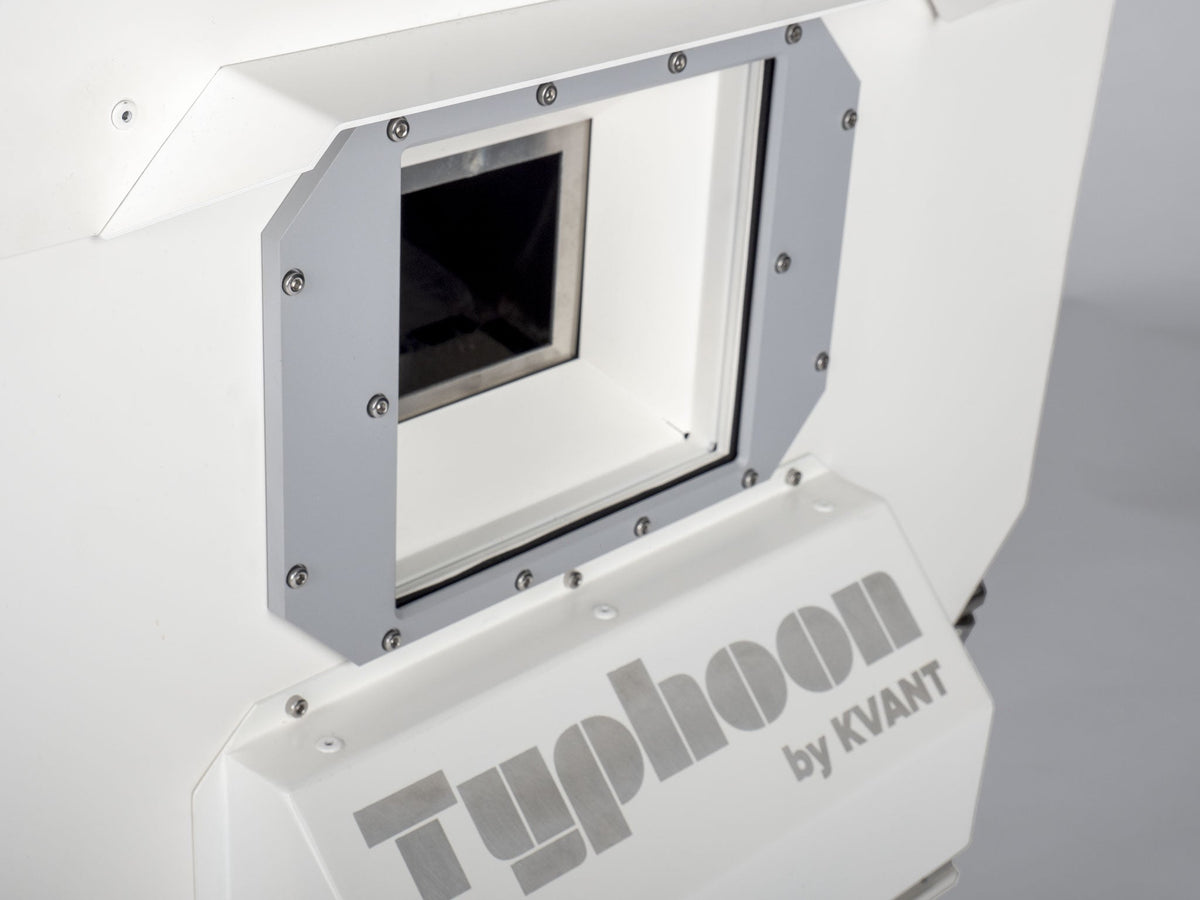

Aperture size
130 x 80 mm, 4 mm thick AR glass
Aperture heating
Internal; regulated with a thermostat
Aperture protection
Top-side aperture overlap
Ventilation
3 to 6 cooling fans [depending on model of laser system], each 220m3/h; 71dBA
Airflow outlet
Front-side, below the output aperture
Air-conditioning
External AC unit [optional]
Power requirements [V] | Input
100-230/50-60Hz
Max. power consumption [VA]
340
Electrical safety
1x RCD, 1x circuit-breaker

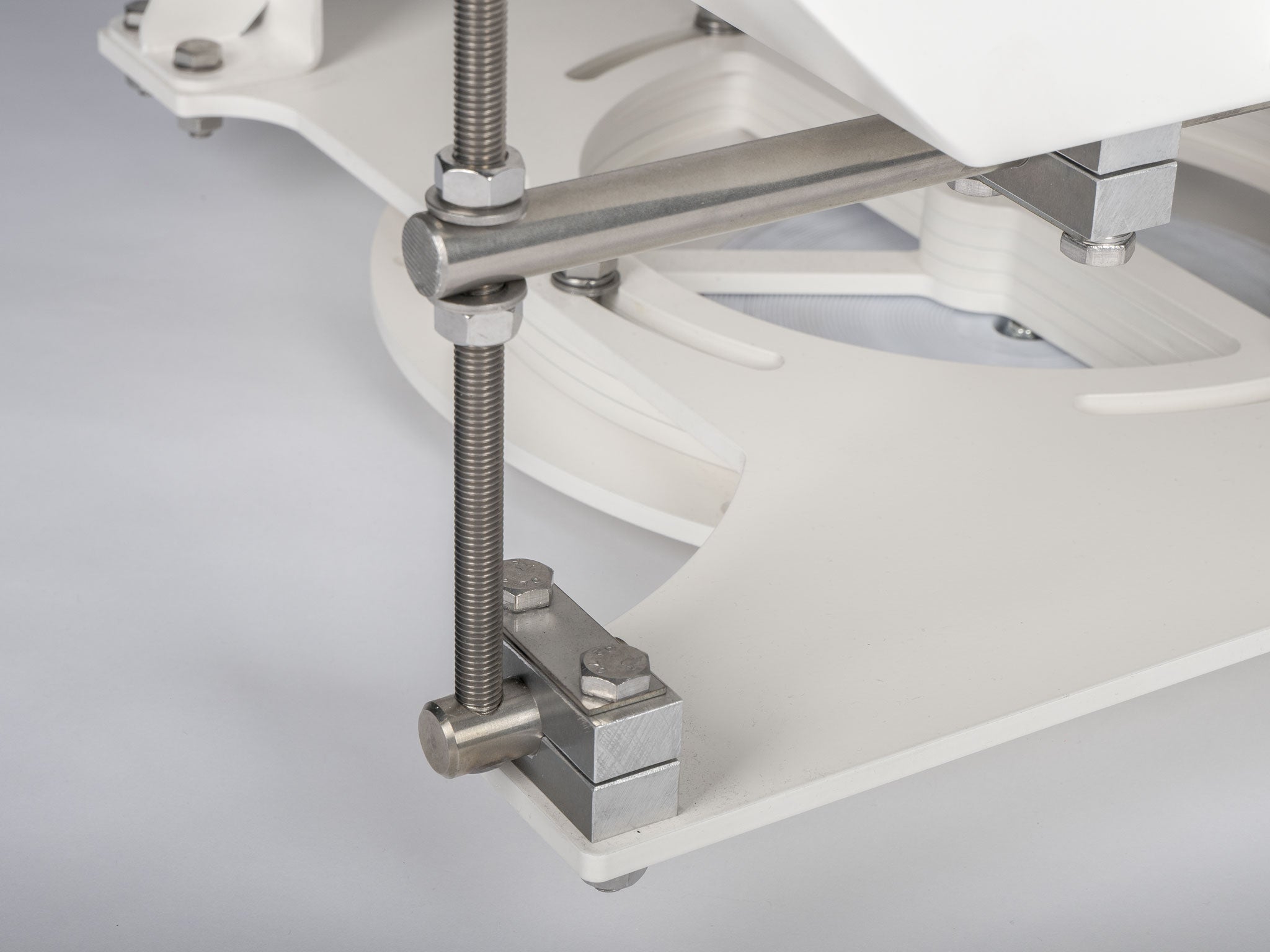

Maximum tilt [degrees]
45 on both axes

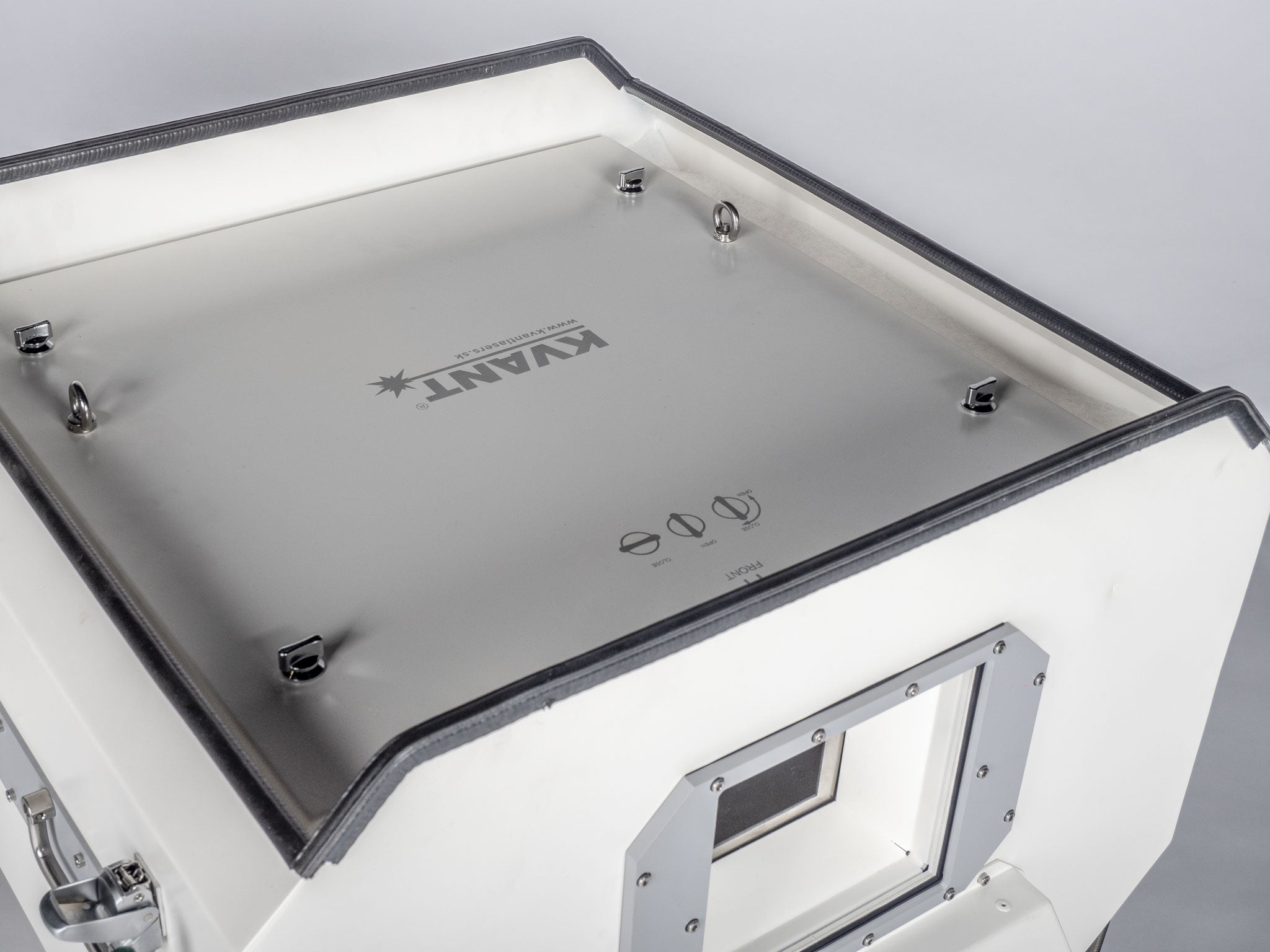

Inside equipment fixings
Rubber-feet slots, ratchet strap

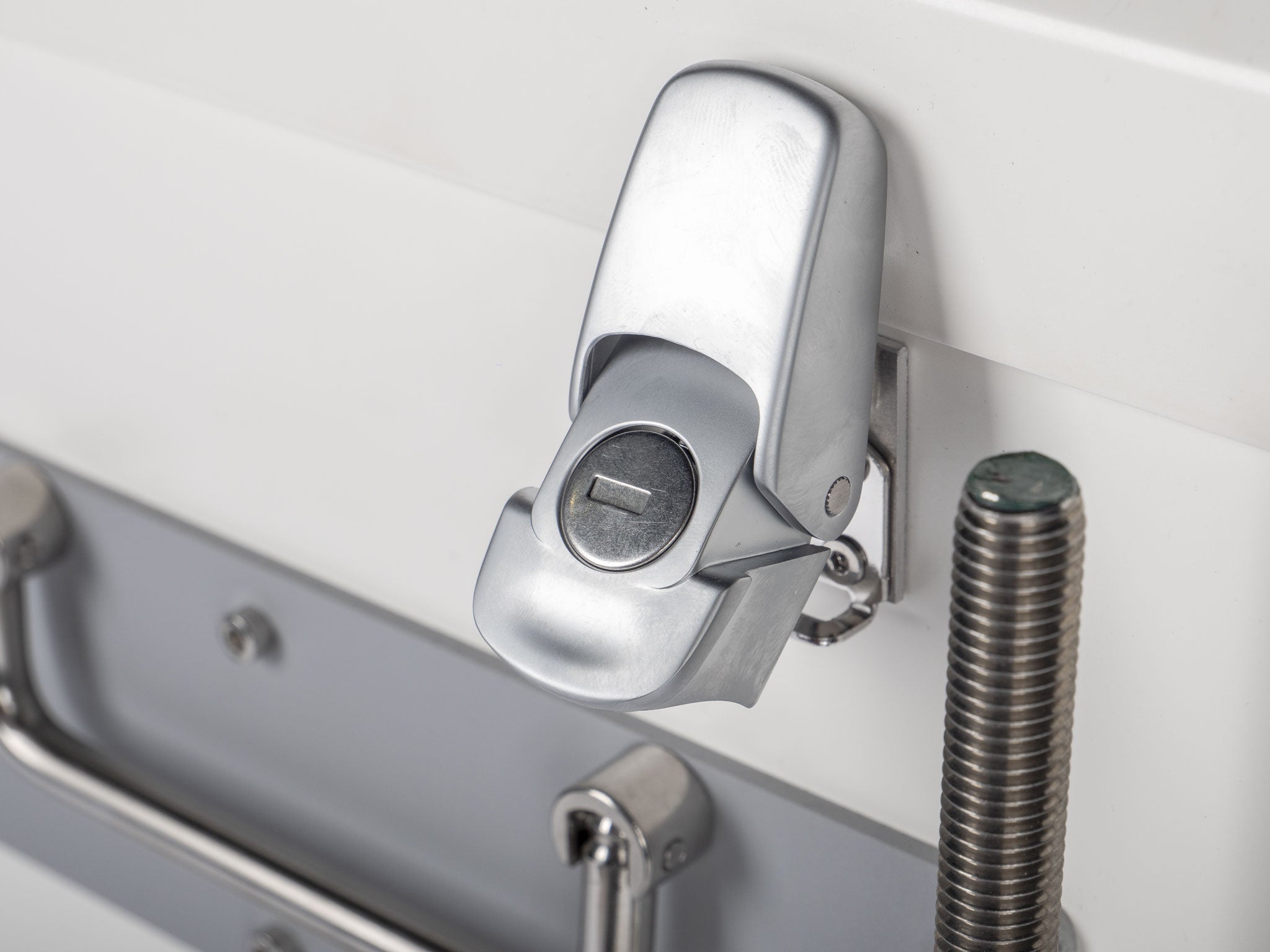

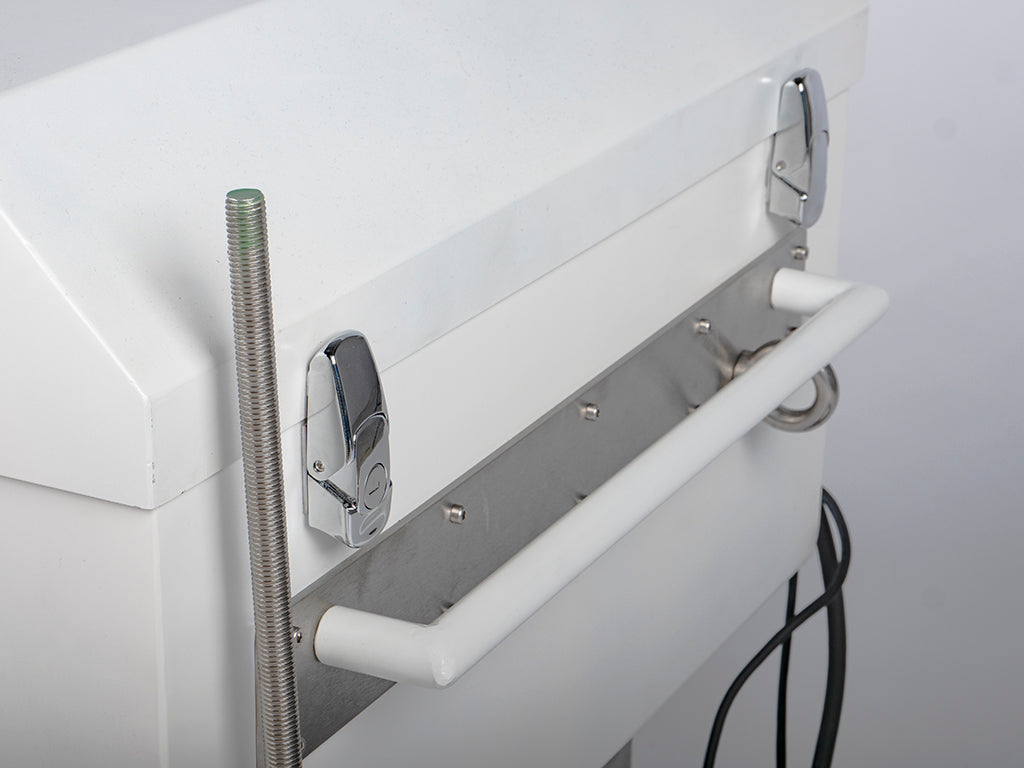

Access restriction
Lid lockable with 2 locks with hatches
Production schedule
Typically 4-5 weeks

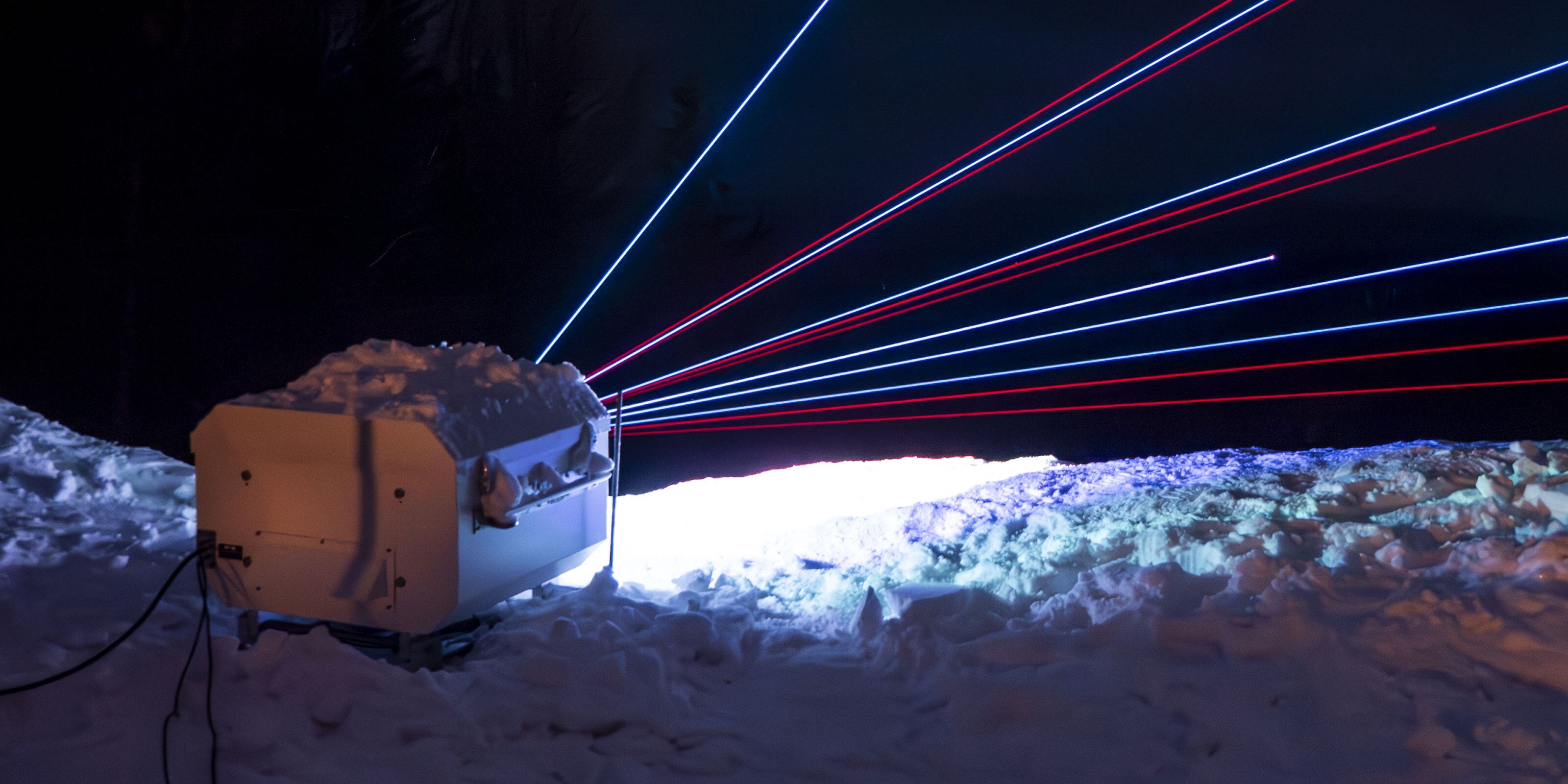

Video
