Network Switch

This high-speed network switch allows up to 16 laser display systems or other devices connected to the network, making it quick and easy to set up even quite complex installations.
The KVANT Network Switch can be fitted inside a 1U rack on its own or in a bigger rack as part of a complete laser control system - for example, together with FlashBack 4 Multi and E-STOP Splitter.

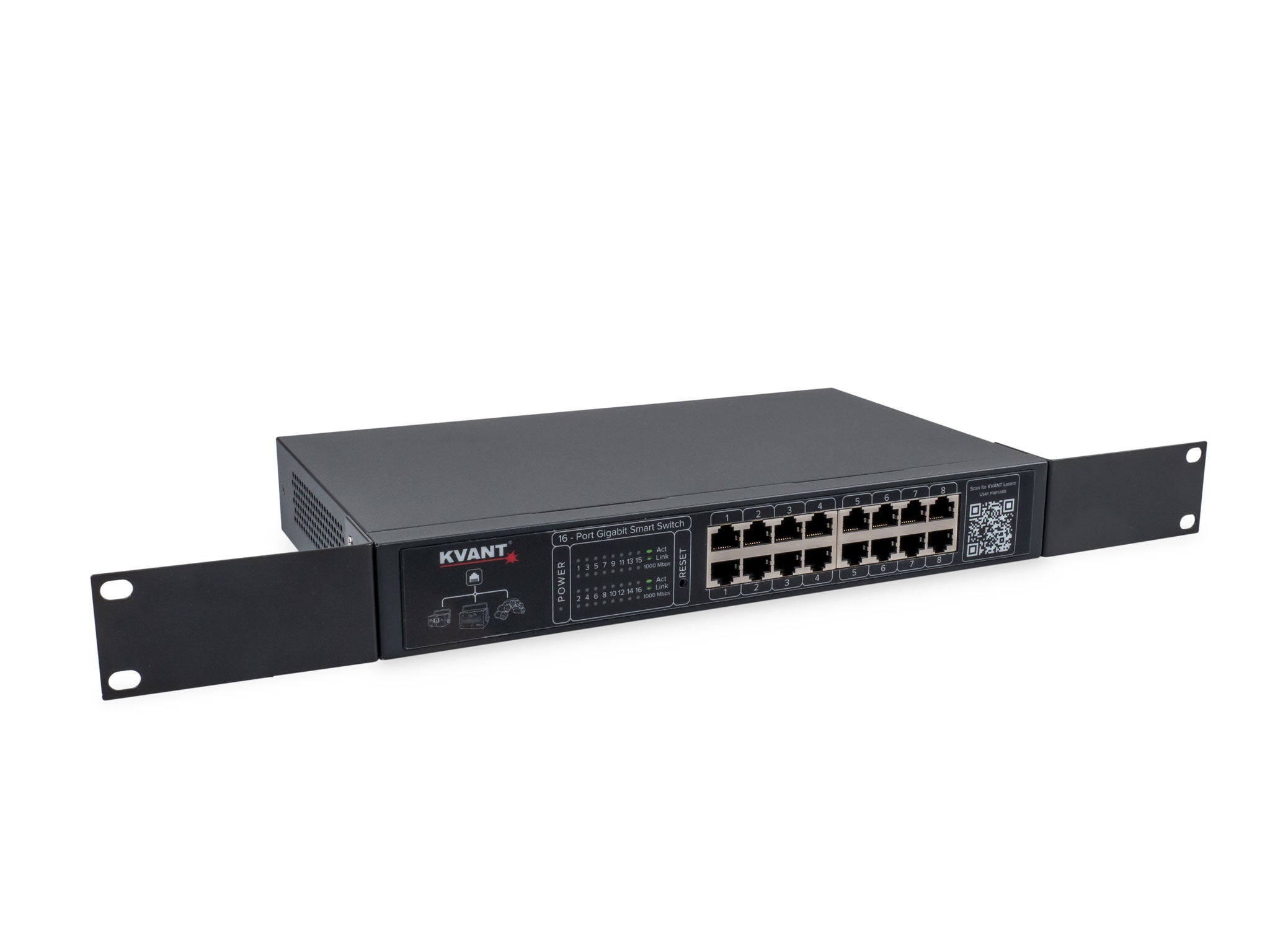

  • Load image into Gallery viewer, Gigabit Ethernet Network Switch for Laser Displays_1

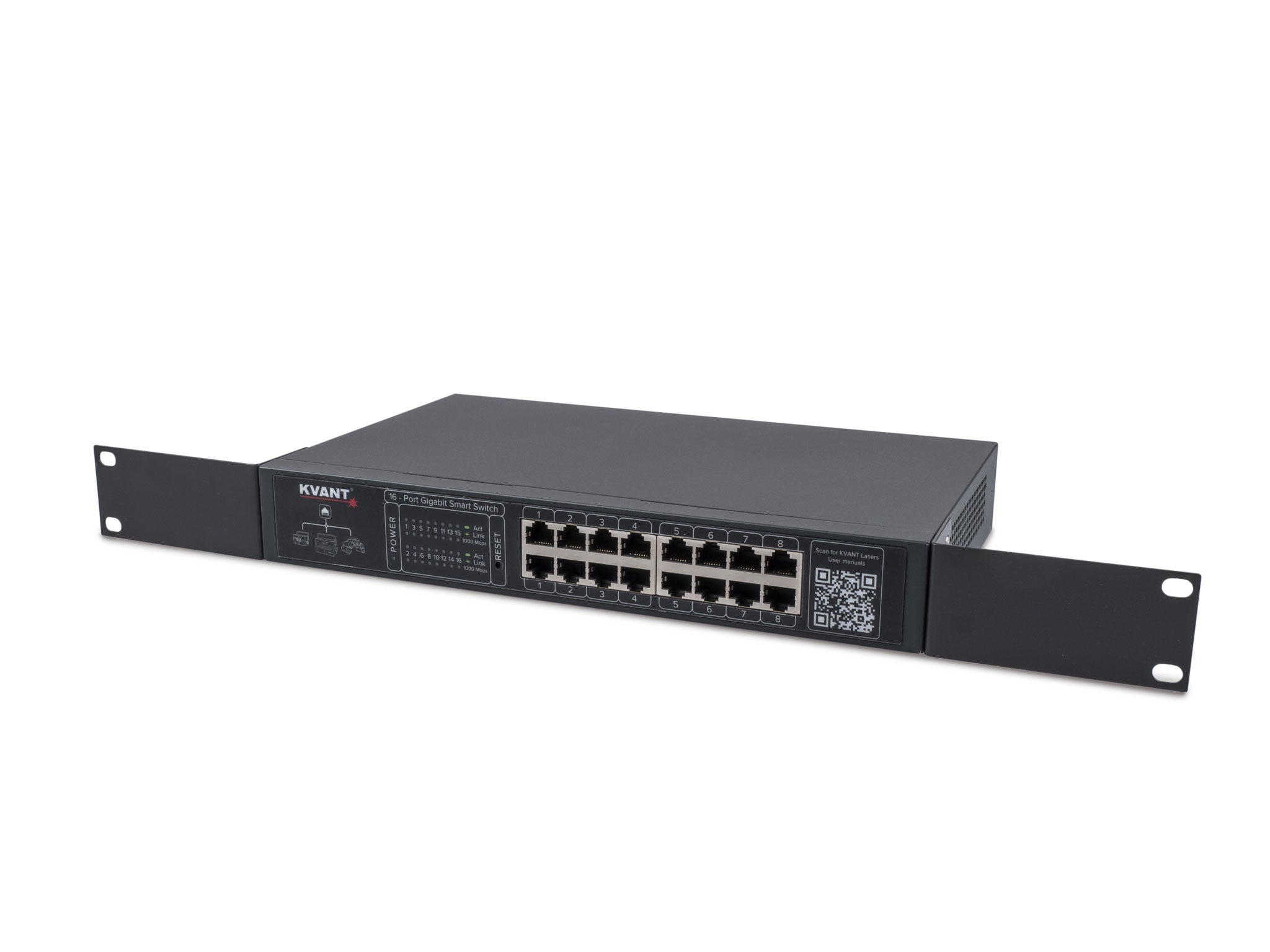

  • Load image into Gallery viewer, Gigabit Ethernet Network Switch for Laser Displays_2

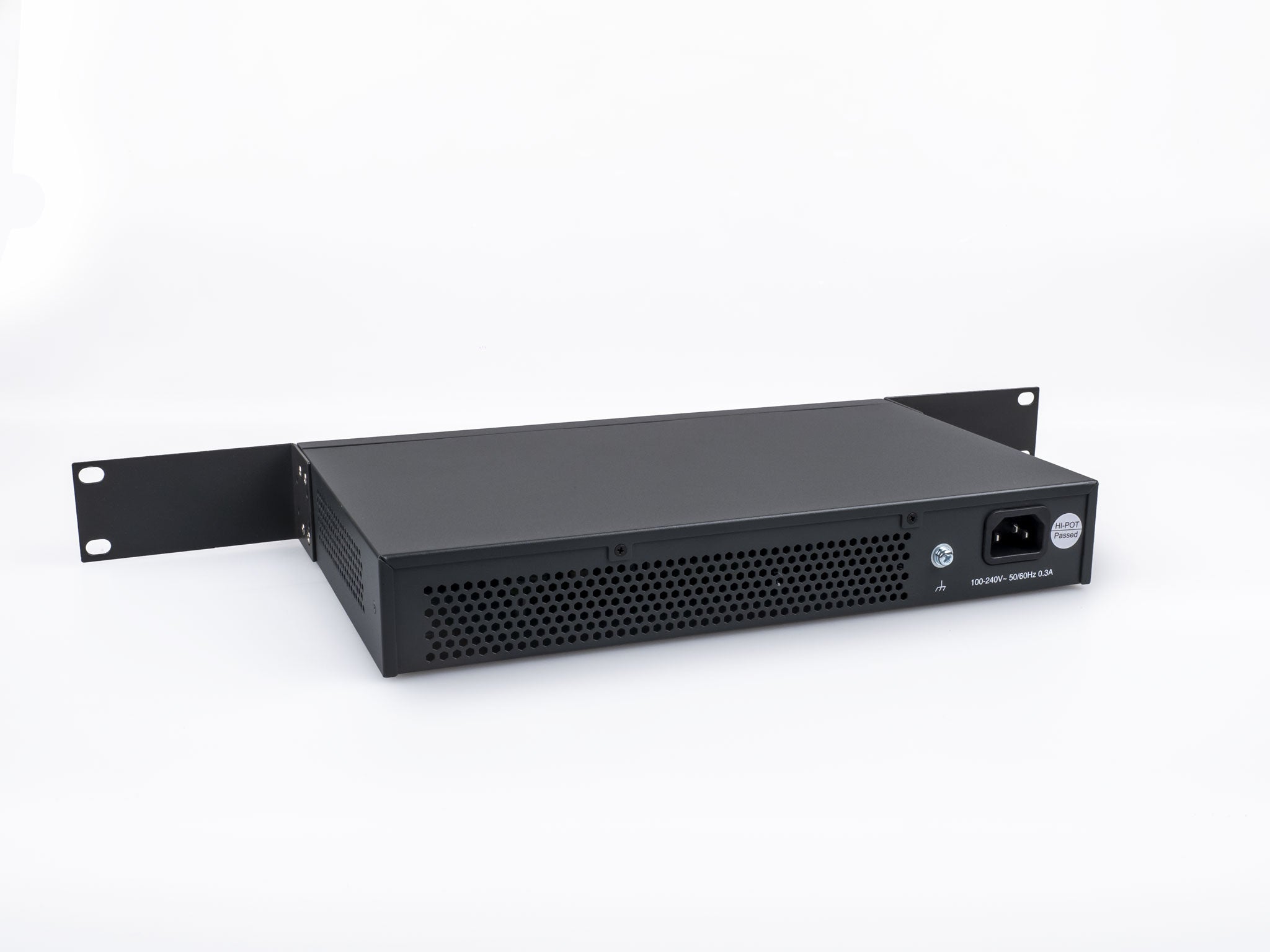

  • Load image into Gallery viewer, Gigabit Ethernet Network Switch for Laser Displays_3

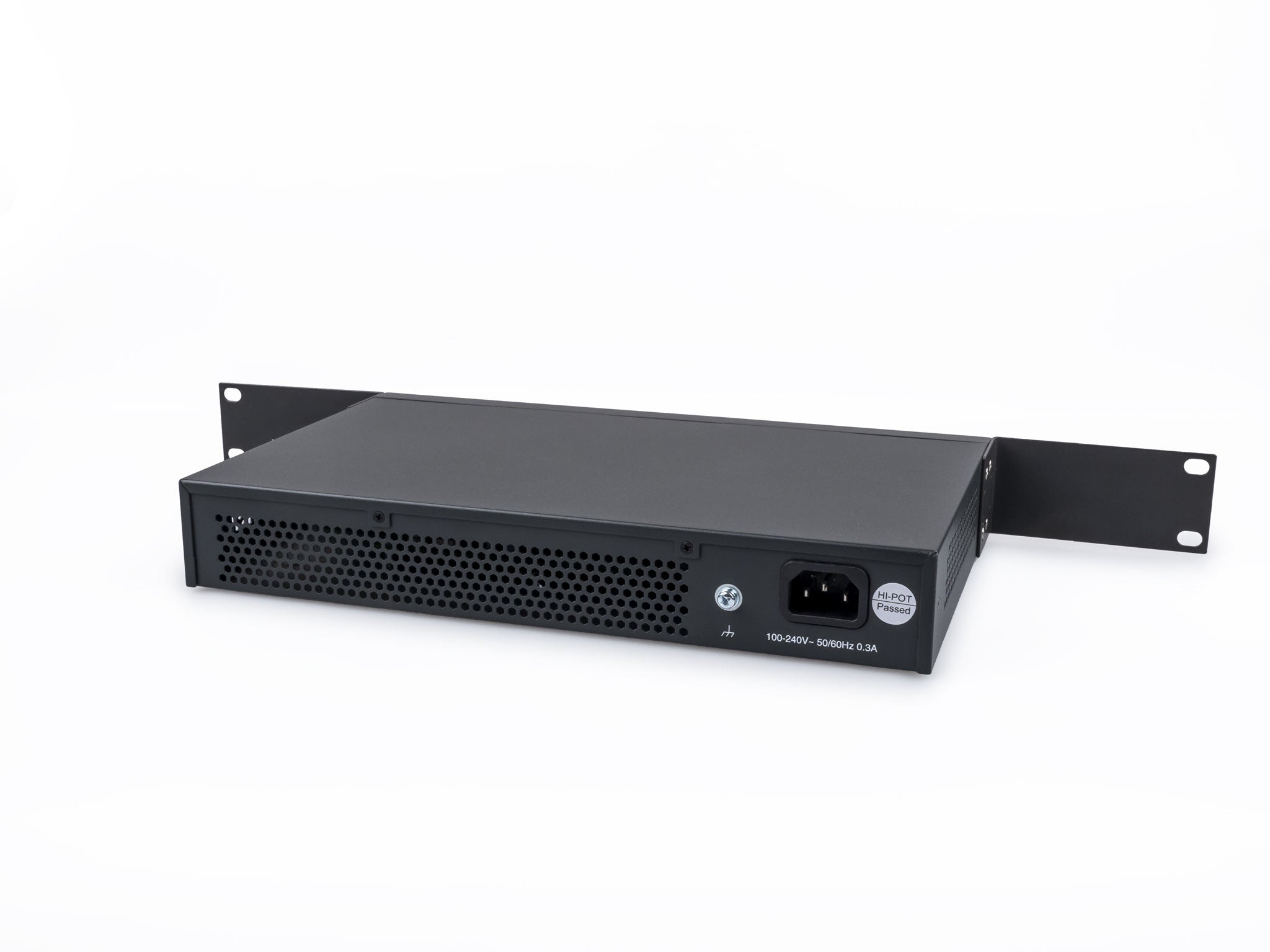

  • Load image into Gallery viewer, Gigabit Ethernet Network Switch for Laser Displays_4

Specifications

Ingress protection rating: IP 20
Operation temperature [°C]: 0-40
Housing colour: black
Size [mm]: 483 x 45 x 170 [WxHxD]
Weight [kg]: 1.3
Power requirements [V]: 100-230, 50Hz
Power consumption: max. 20VA
Flash Memory: 128MB
PoE-Budget: 64W
Circuits: 8 x 1000Base-T RJ-45 ¦ 8 x 1000Base-T RJ-45 PoE
Product Type: Network Switch with 16 unmanaged connections
Indicators: Power, System, PoE, Link/Activity, Diagnostics, Cyclus
Ports: 8 x 10/100/1000 + 8 x 10/100/1000 (PoE)
Features: Quality of Service (QoS), Energy Efficient Ethernet, Security lock slot (cable lock sold separately), cable test
Capacity: QoS-Hardware queue: 4
Performance: Switching-Capacity: 32 Gbit/s ¦ Forwarding service (Packet size 64 Byte): 23.8 Mpps
Power Over Ethernet (PoE): PoE
Enclosure Type: Desktop, rack-mountable
Jumbo Frame Support: 9216 Byte
Subtype: Gigabit Ethernet
RAM: 128 MB
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3az
Rack size: 1U
