E-STOP Splitter 8

E-STOP Splitter 8

Price on request

Regular price
£858.00
Sale price
£858.00
Regular price
Sold out
Unit price
per

Total

£858.00

excl. shipping & VAT

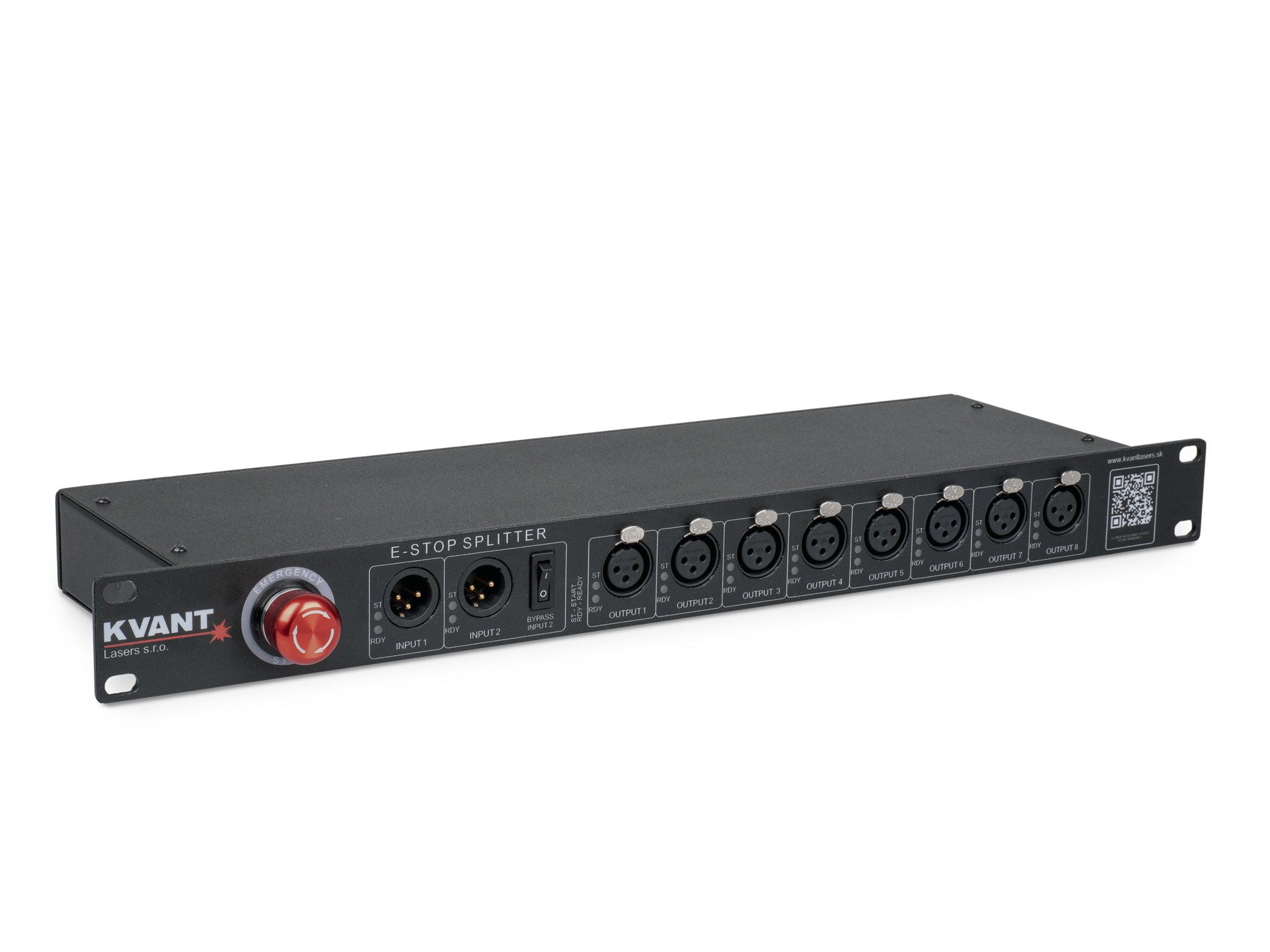

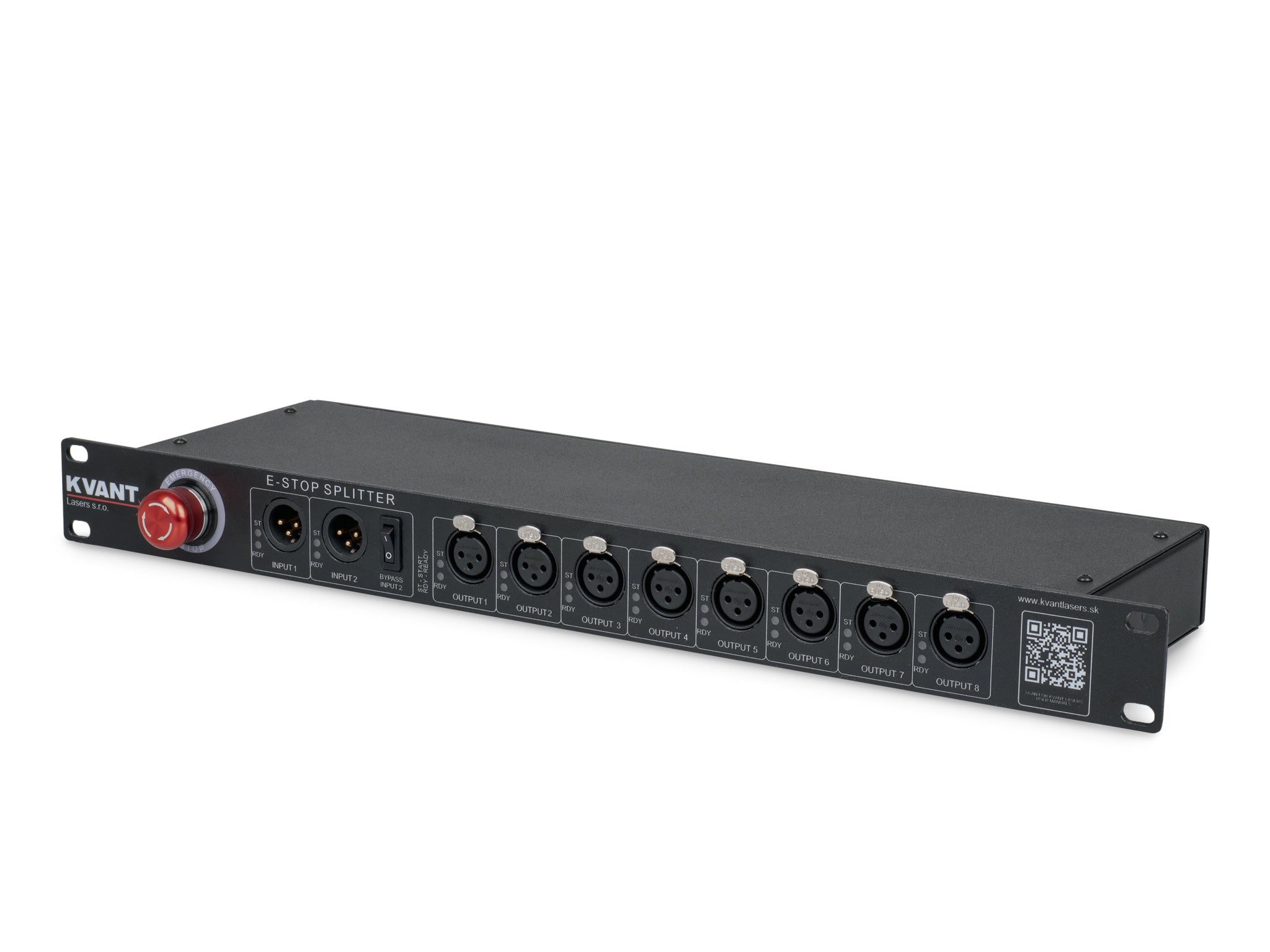

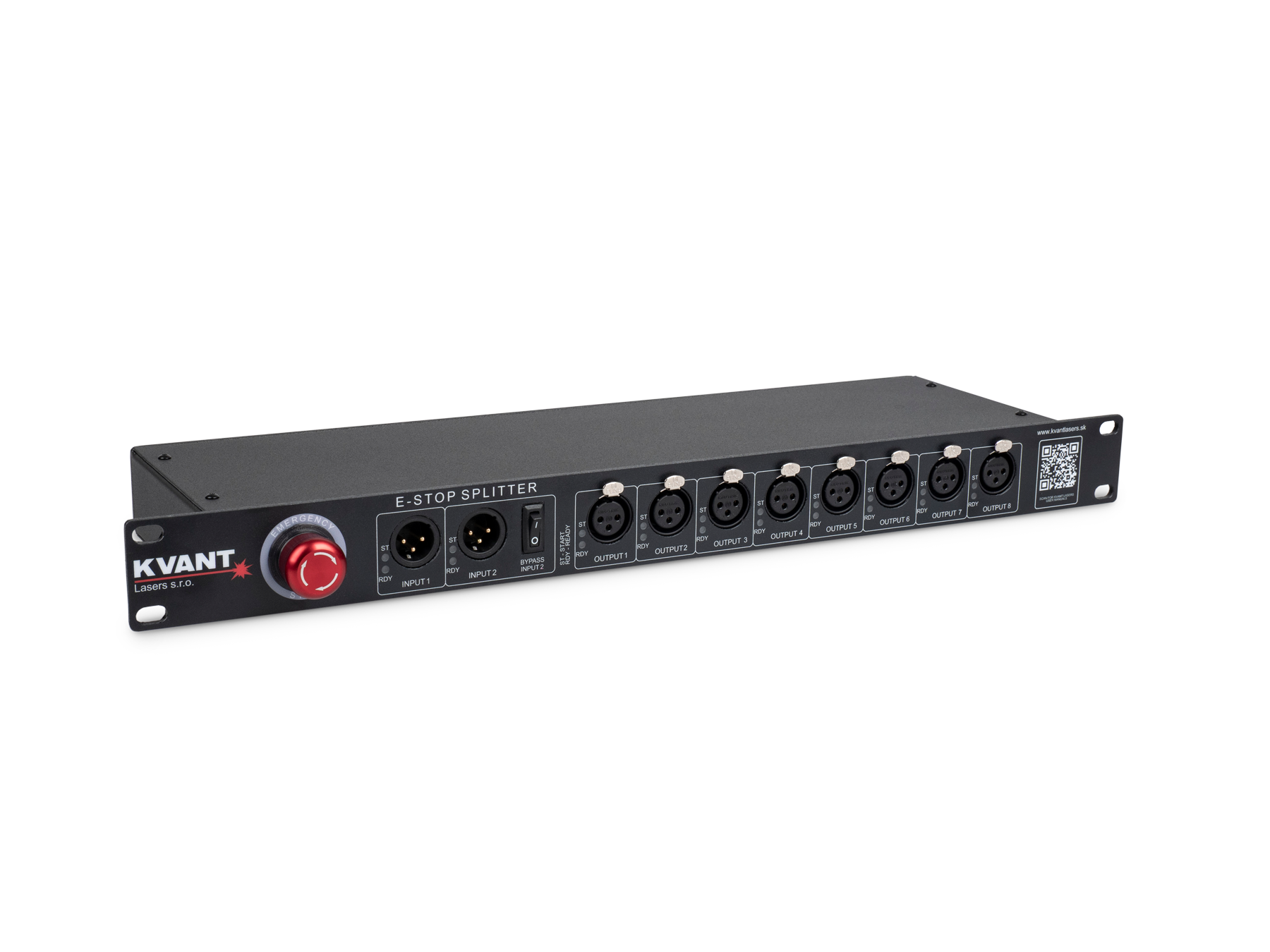

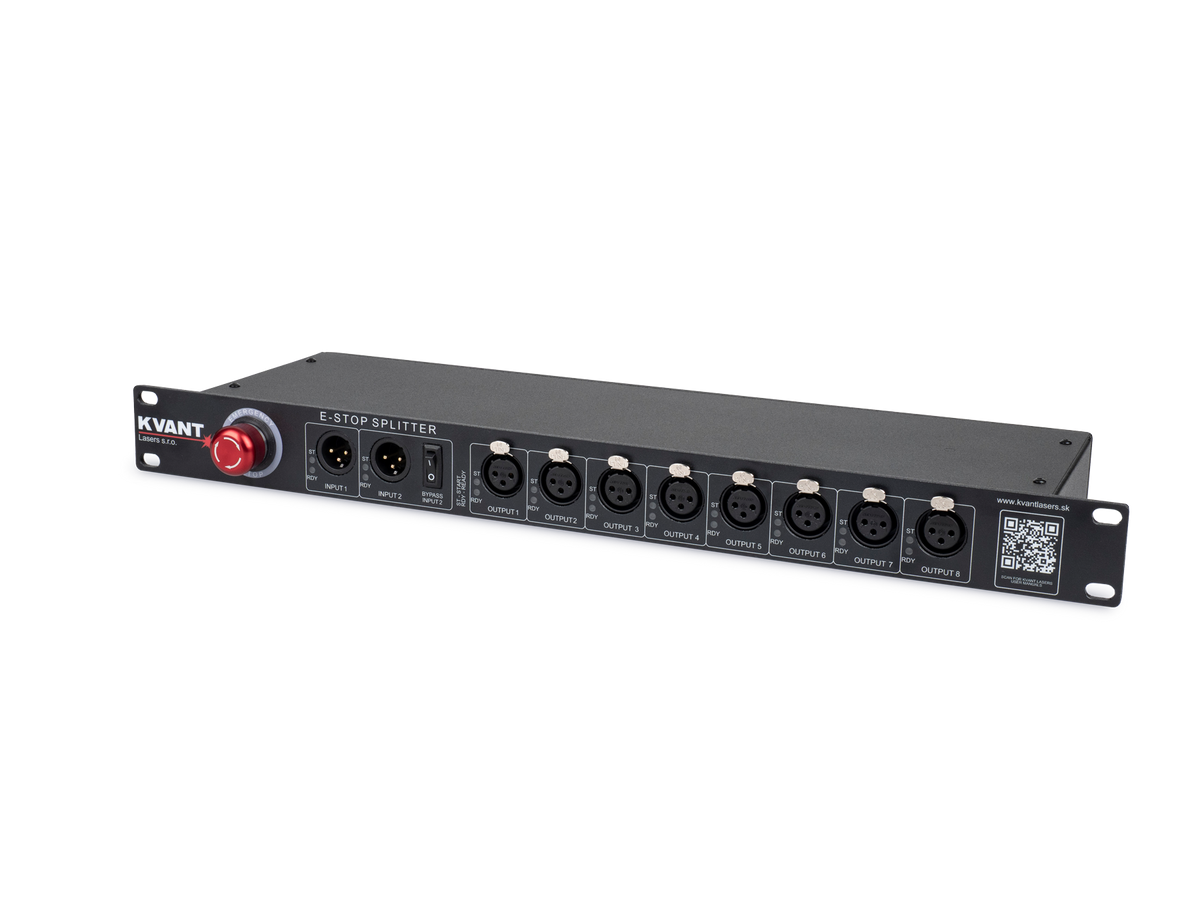

E-STOP Splitter 8 front view

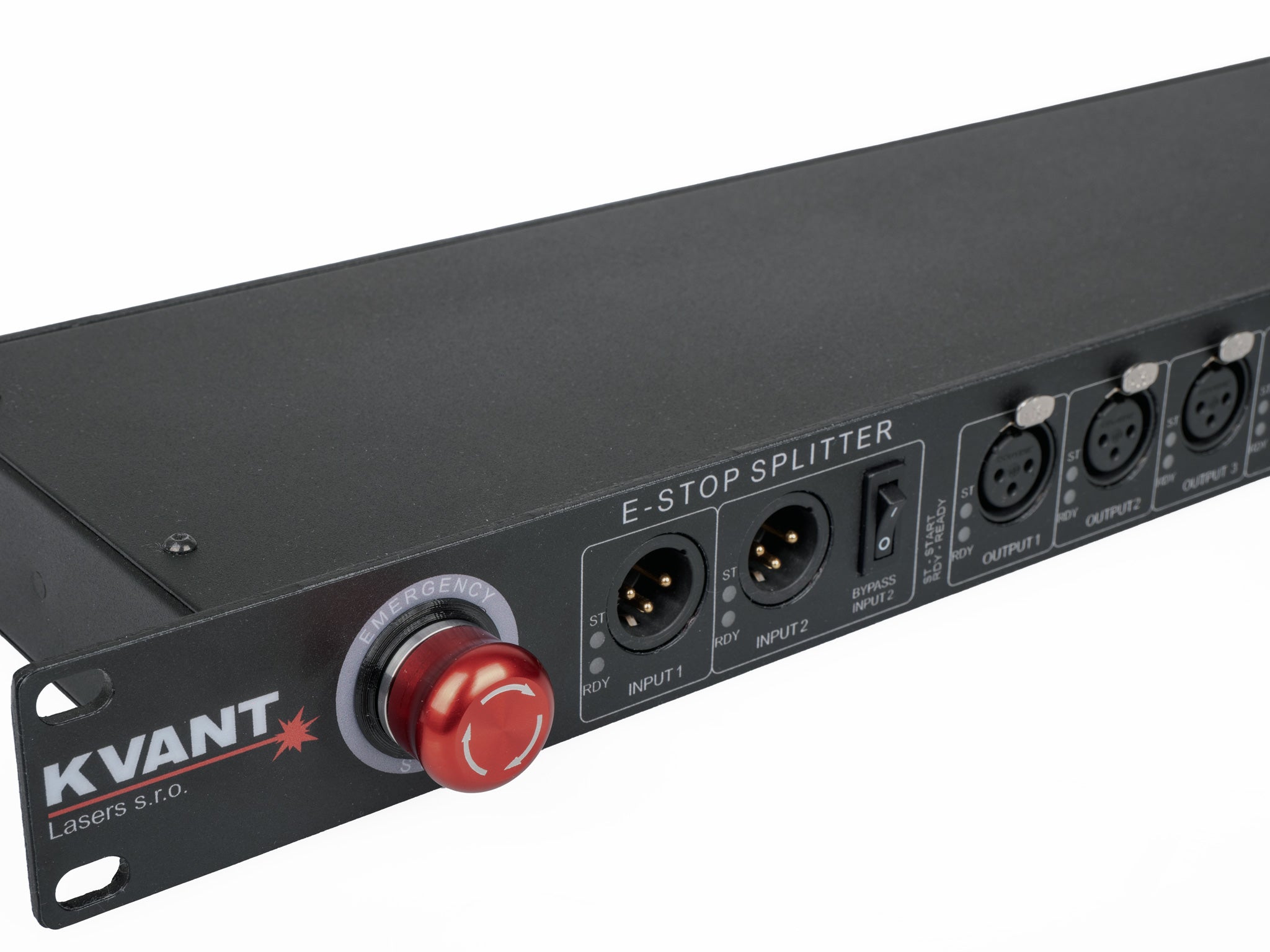

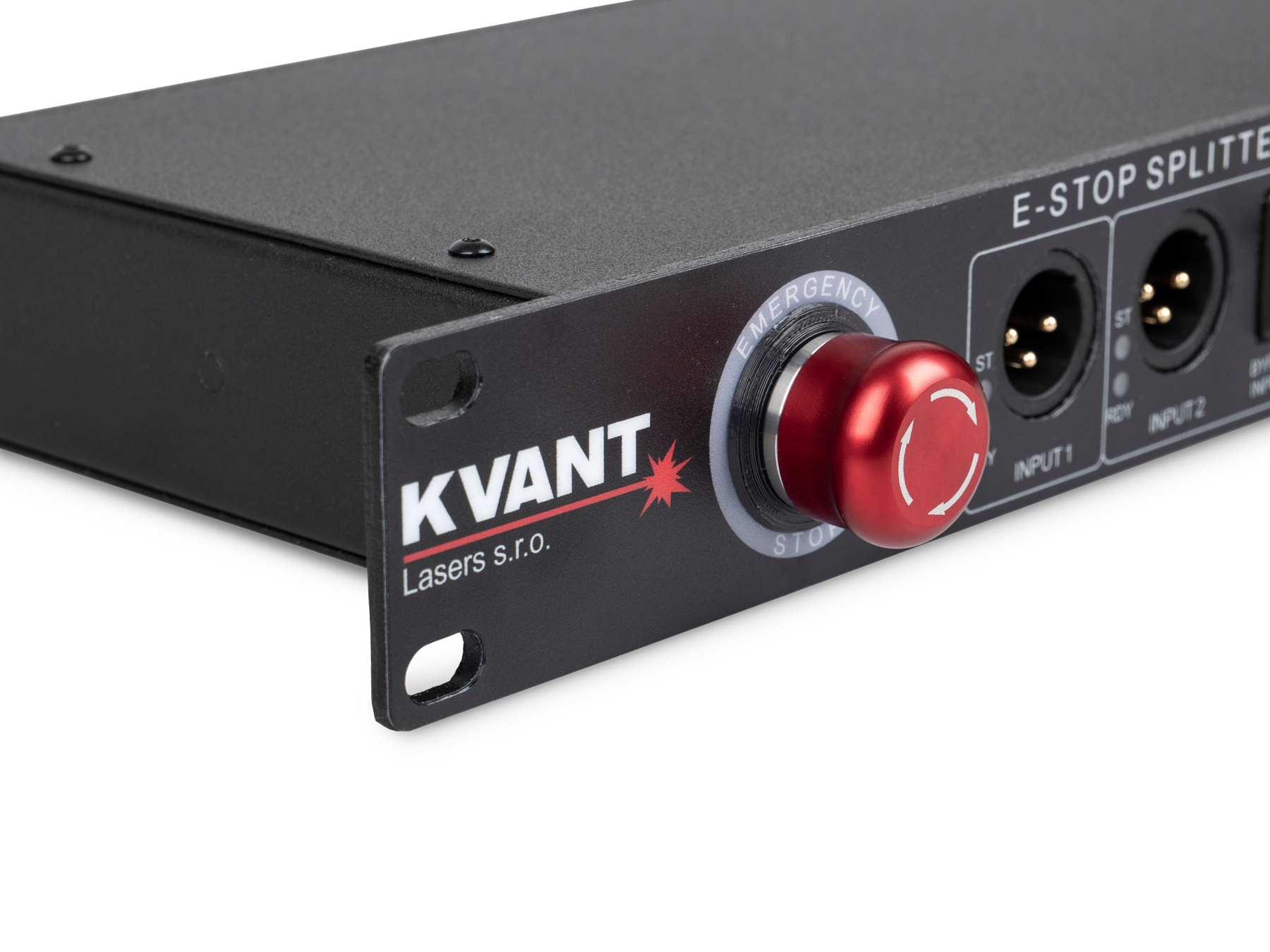

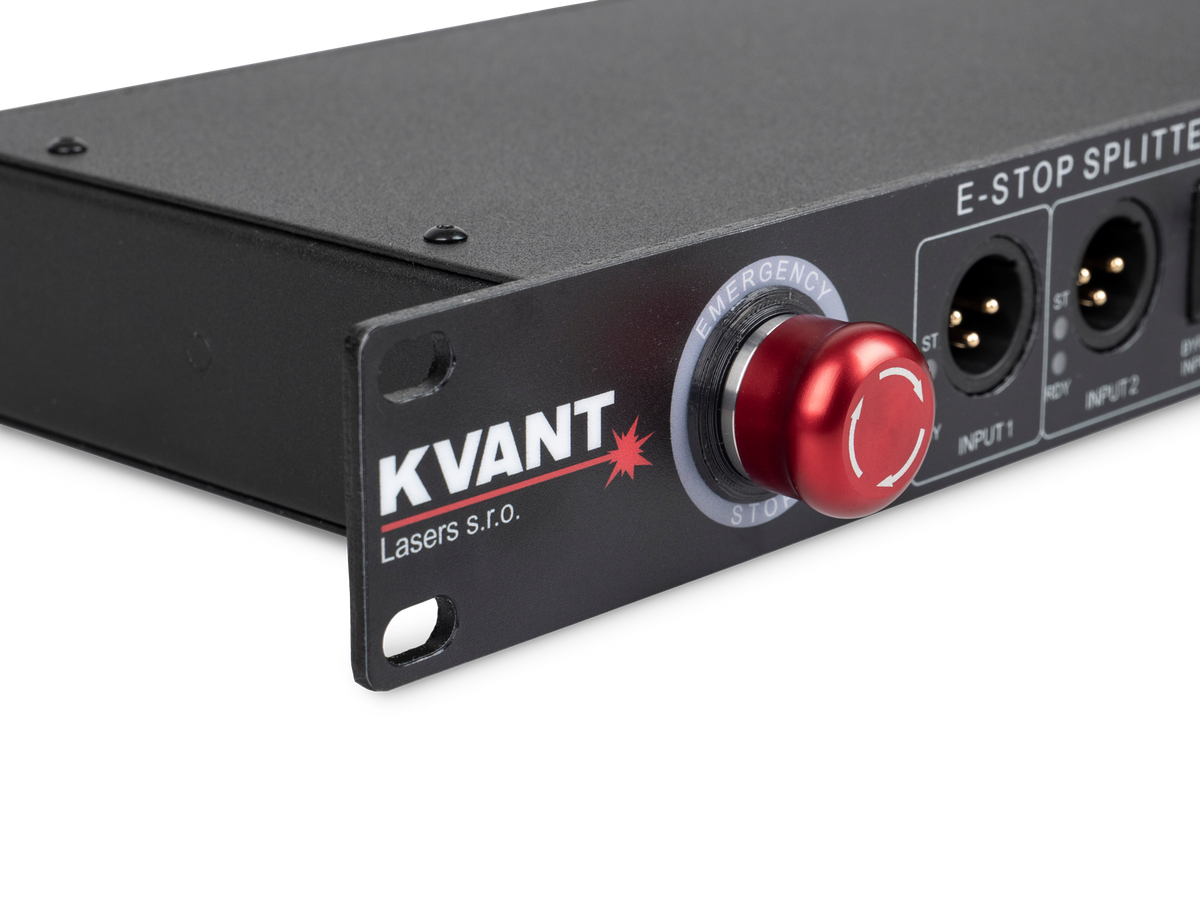

E-STOP Splitter 8 detail

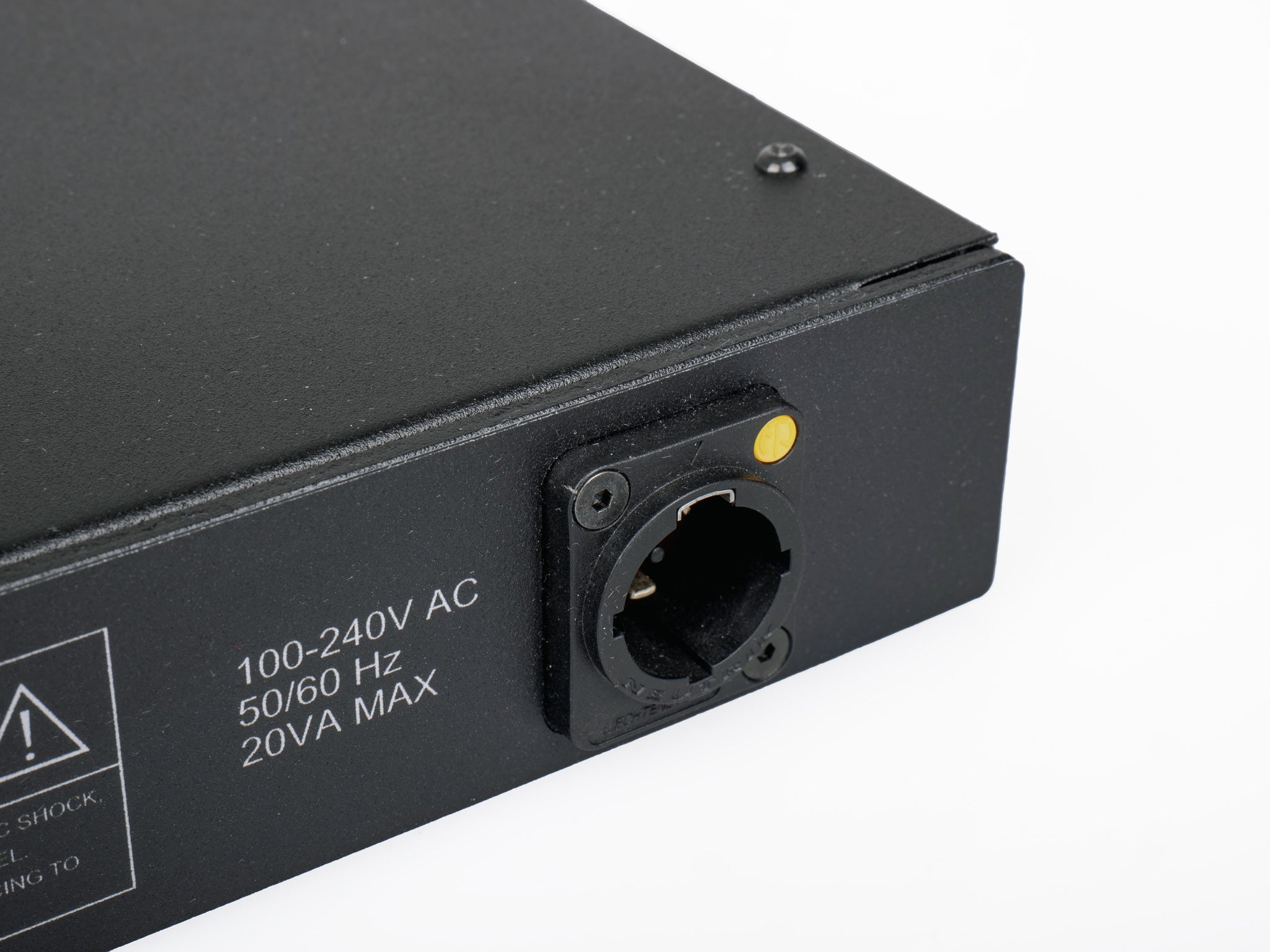

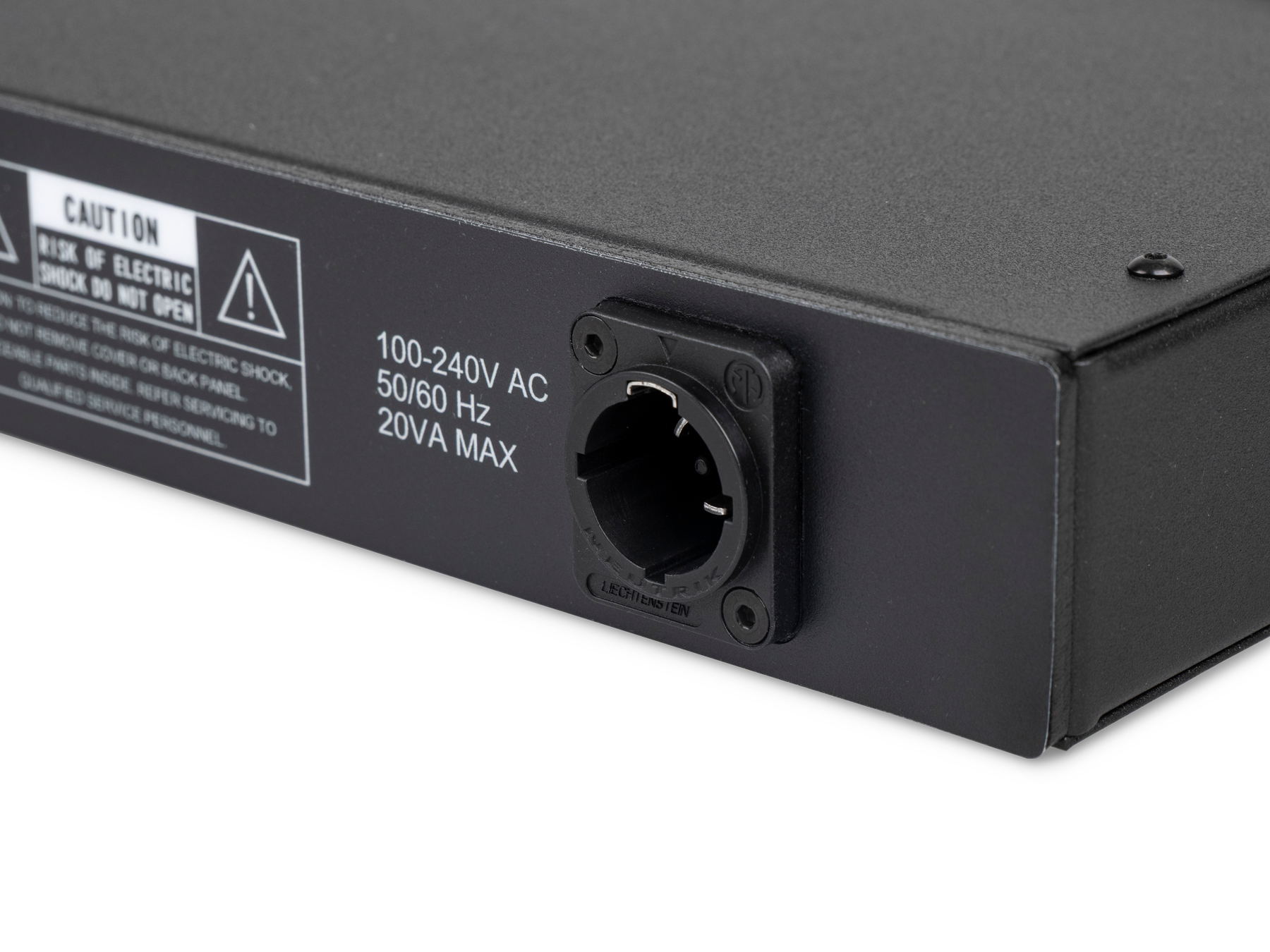

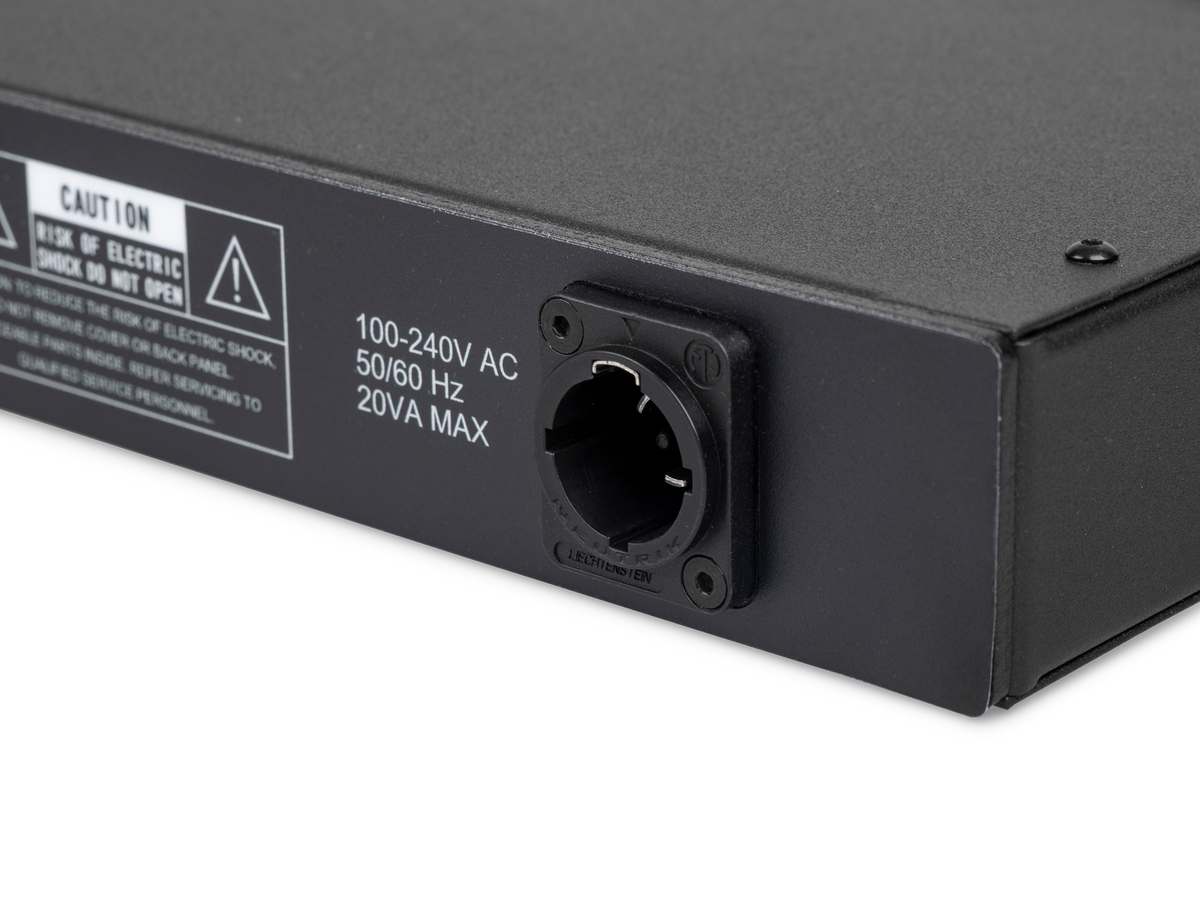

E-STOP Splitter 8 power input

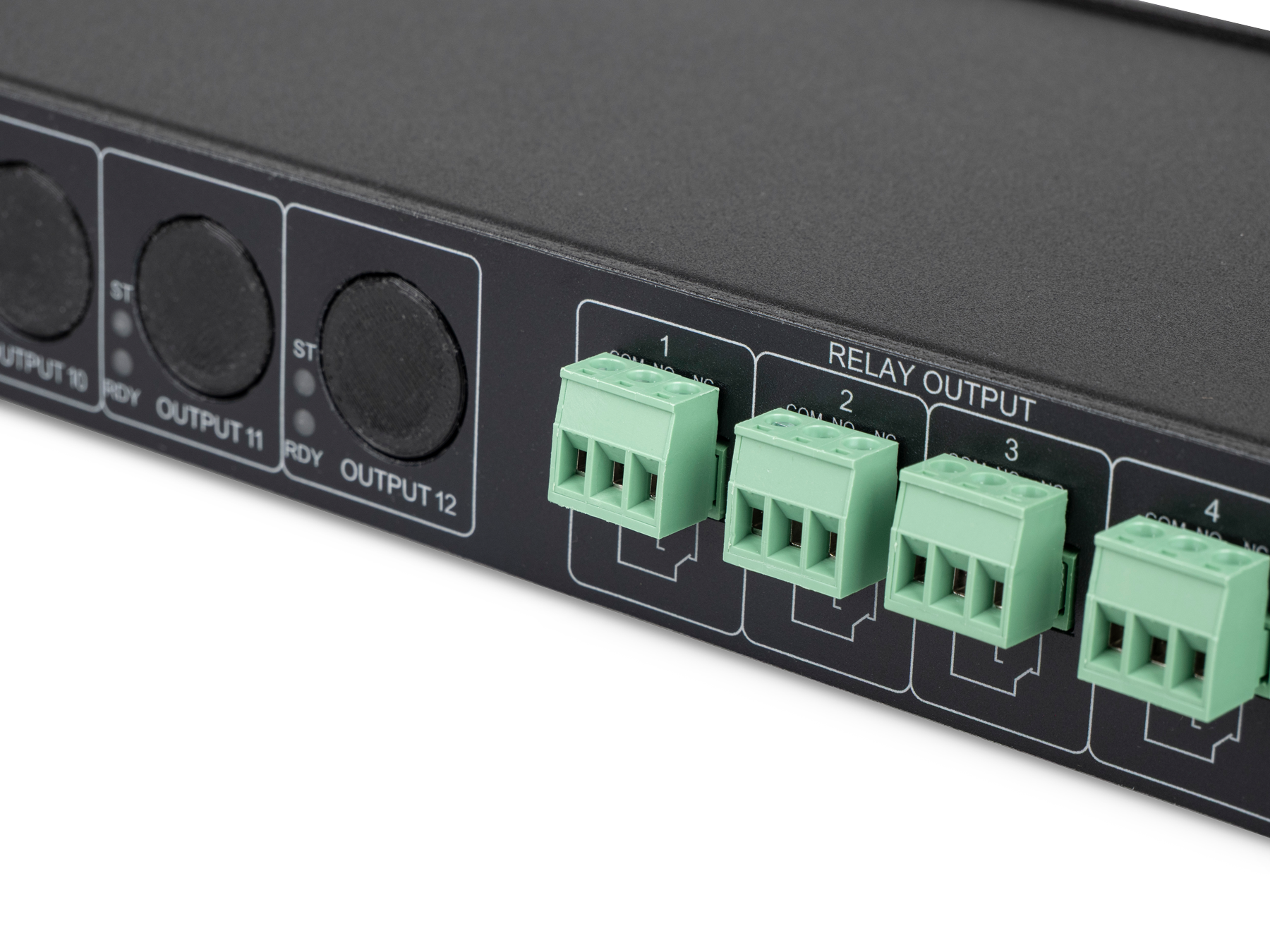

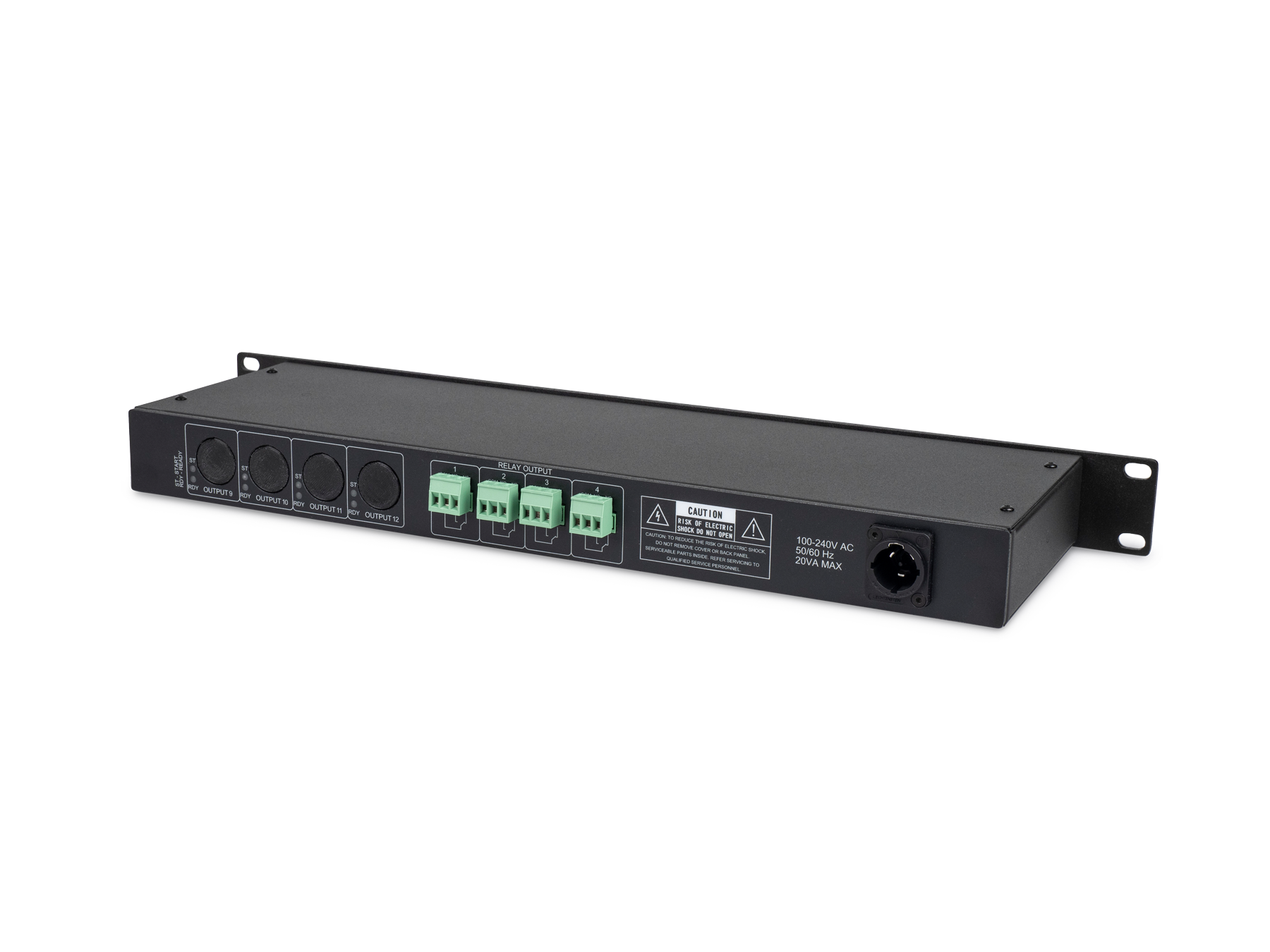

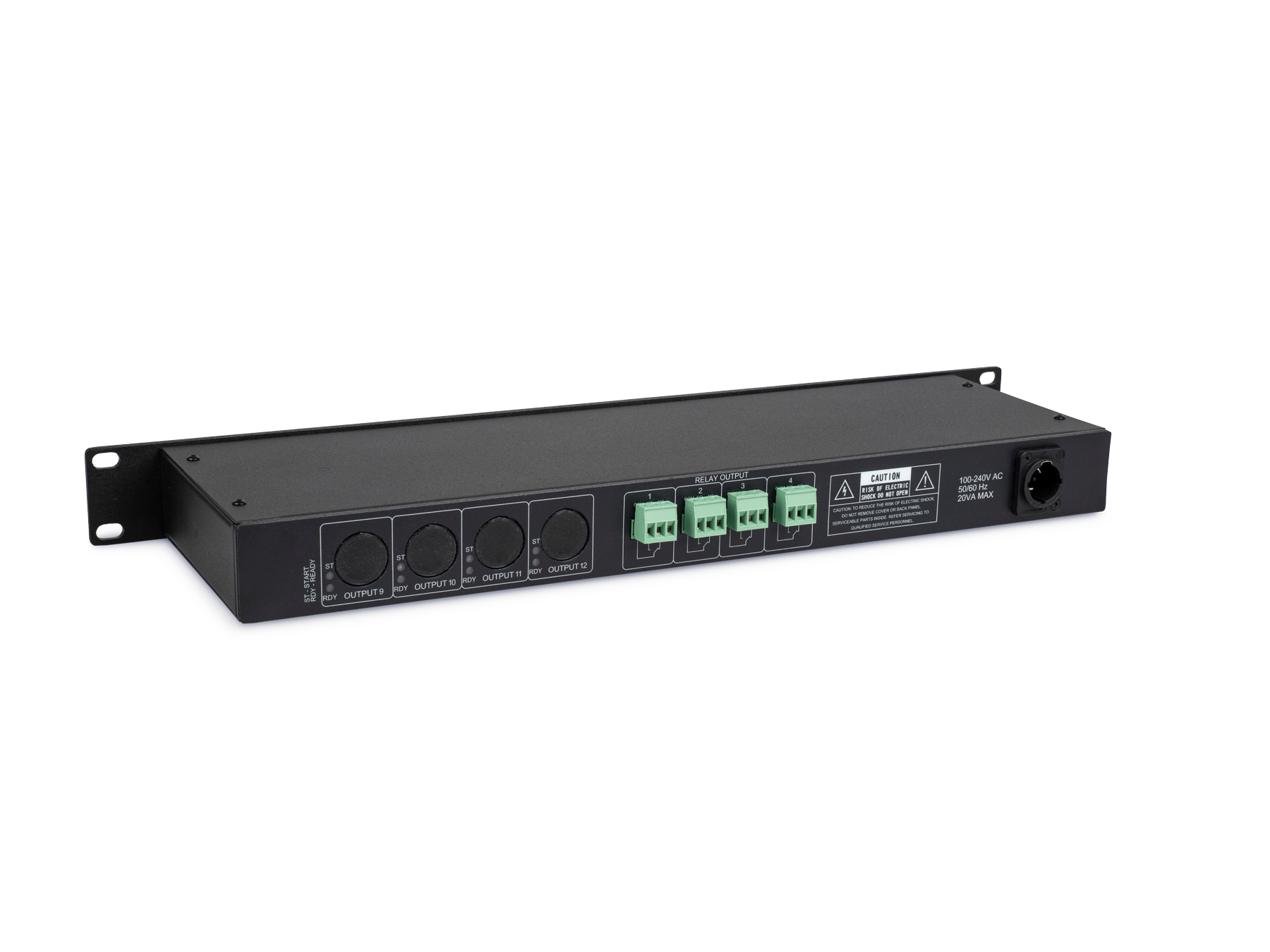

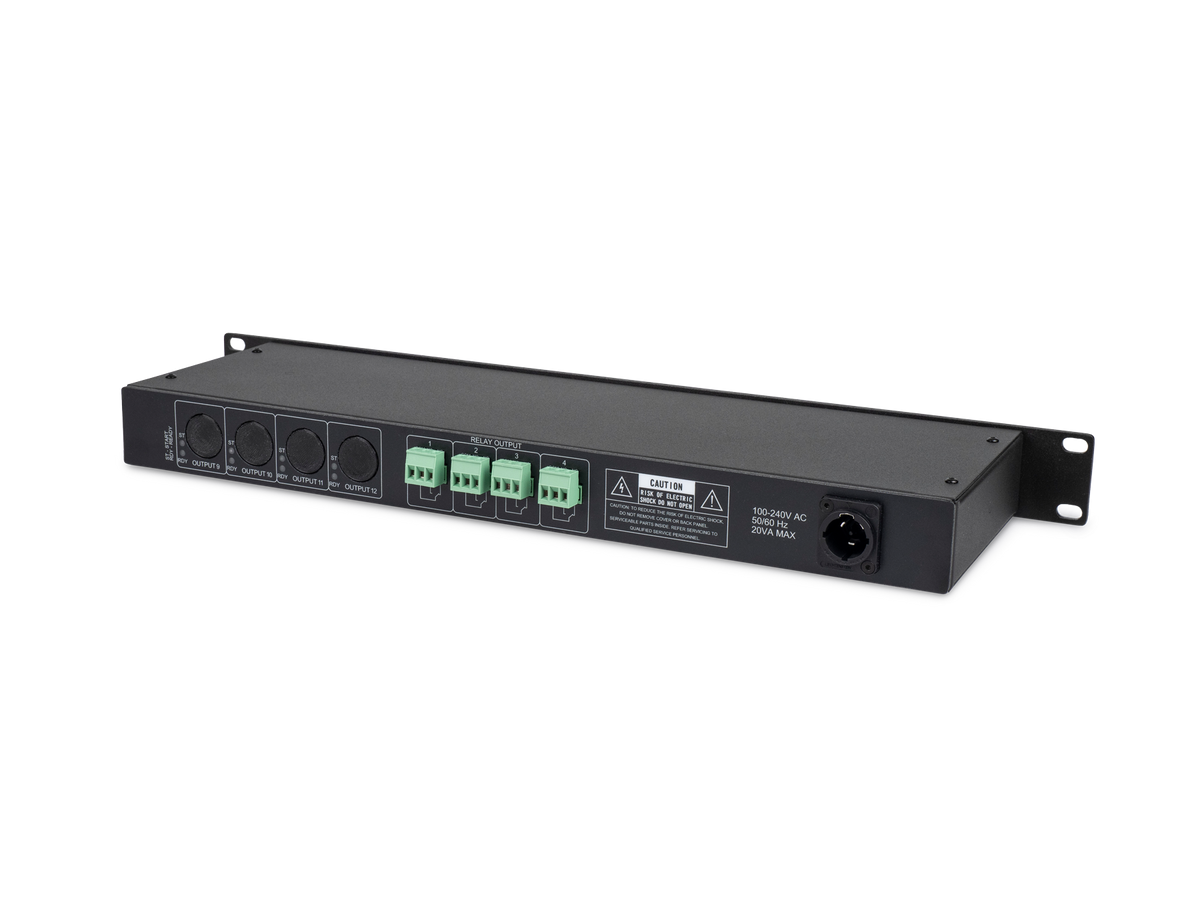

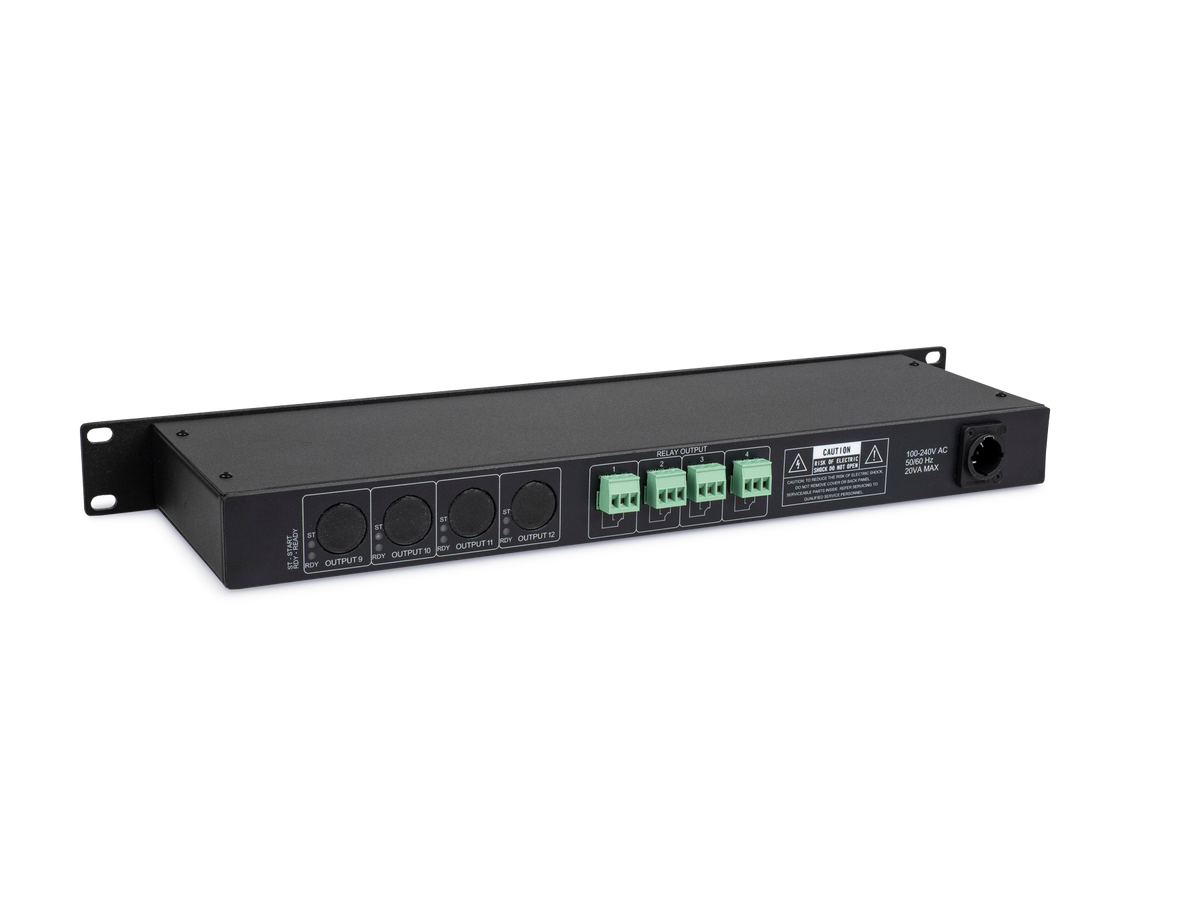

E-STOP Splitter 8 back view

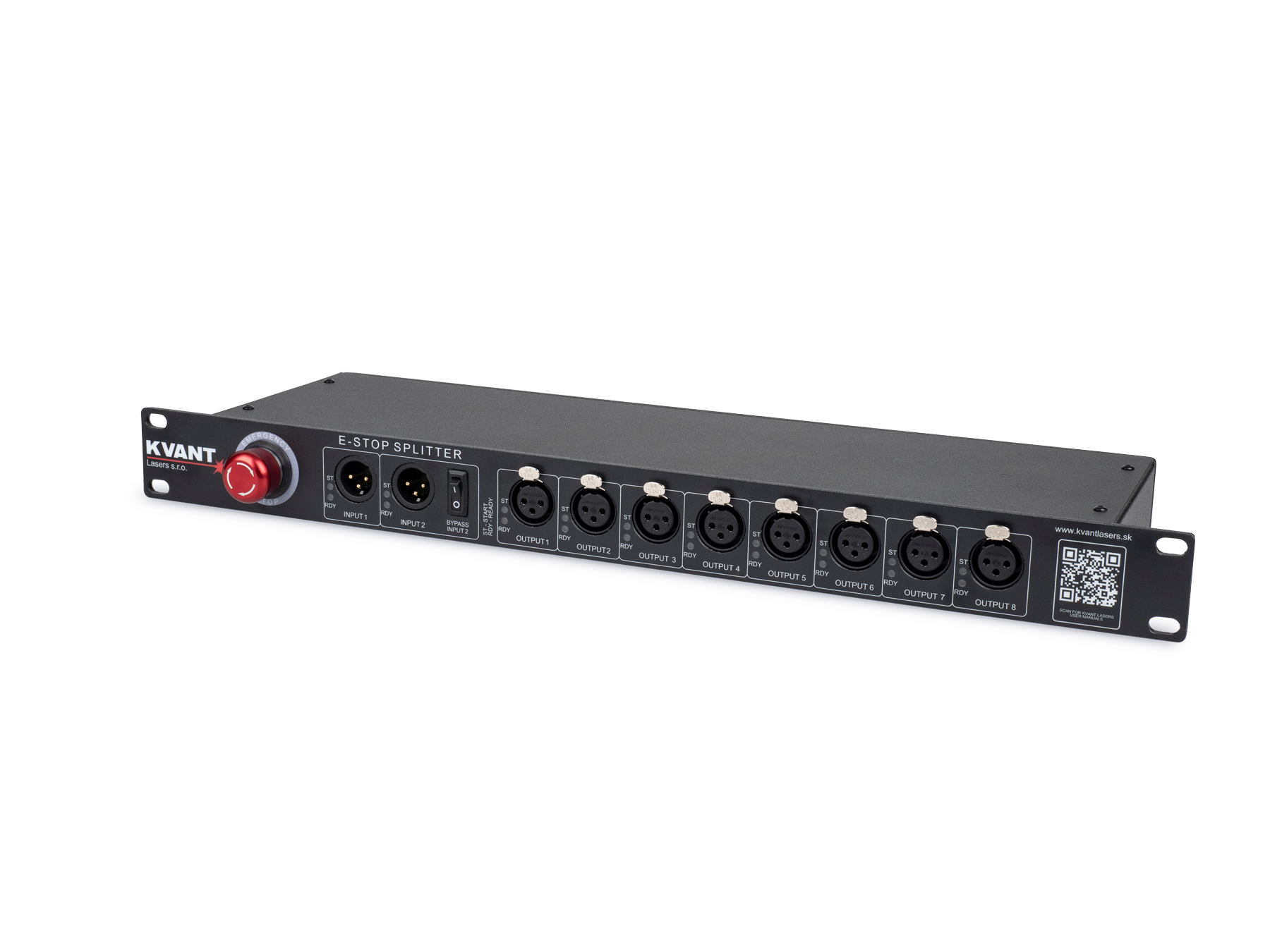

E-STOP Splitter 8
  • Load image into Gallery viewer, E-STOP Splitter 8 front view
  • Load image into Gallery viewer, E-STOP Splitter 8 detail
  • Load image into Gallery viewer, E-STOP Splitter 8 power input
  • Load image into Gallery viewer, E-STOP Splitter 8 back view
  • Load image into Gallery viewer, E-STOP Splitter 8

Description

Every new Kvant laser display projector is delivered with a top-quality E-STOP system that fulfils all the safety features required by legislation. It allows you to control one or more projectors when connected in series.

However, in some situations, you may need to control the E-STOP signal from various positions within the setup and/or manage more lasers that are split into multiple groups.

The new 8-output E-STOP splitter box offers so many ways how the E-STOP signal can be spread across all the Kvant lasers in a given setup.
The splitter box distributes the signal in a parallel way, making it possible to connect a virtually unlimited number of laser projectors and control them at once/or per group. Each splitter has two E-STOP remote inputs, which allows for two E-STOP remote positions (a.i. FOH and stage) per setup or sub-group.
E-STOP splitter gives you a virtually unlimited number of ways how the E-STOP signal can be routed.

Specifications

Inputs:
2x [3-pin XLR]
Outputs: 8x [3-pin XLR]
Power requirements [V]: 100-230, 50Hz
Consumption: max. 20VA
Outputs: Optically isolated from each other, each output is ESD protected and is "power cross safe", each output can control an unlimited number of Kvant laser projectors.
Max. control distance: Up to 1000 meters with a high-quality signal cable.
Ingress protection rating: IP 20
Operation temperature [°C]: 0-40
Housing colour: black
Weight [kg]: 2
Size [mm]: 483 x 45 x 140 [WxHxD]
Required rack space: 1U
