ATOM XR 30

The XR - an innovative type of powerful RGB outdoor laser projector based on an entirely new architecture. We are pioneering again!

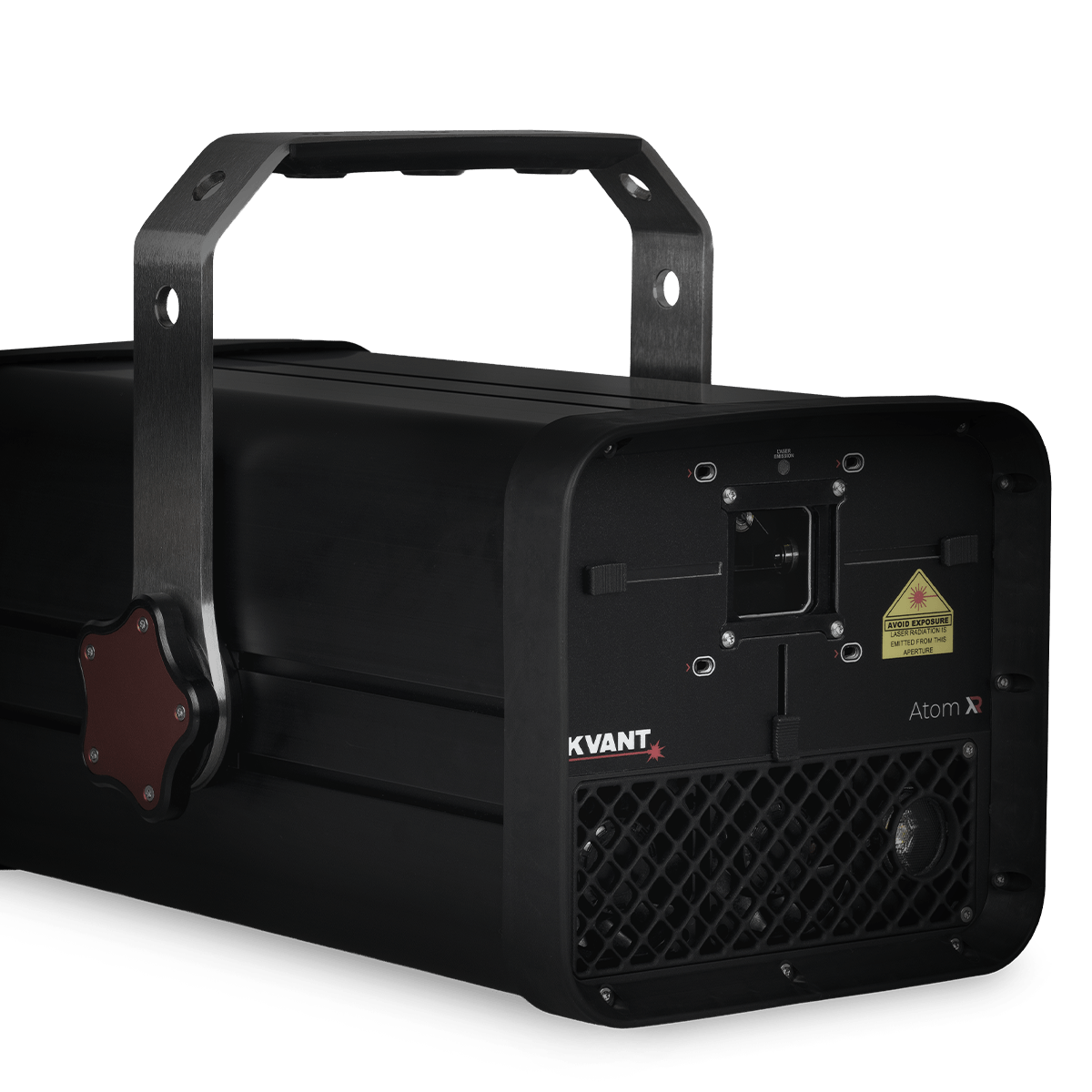

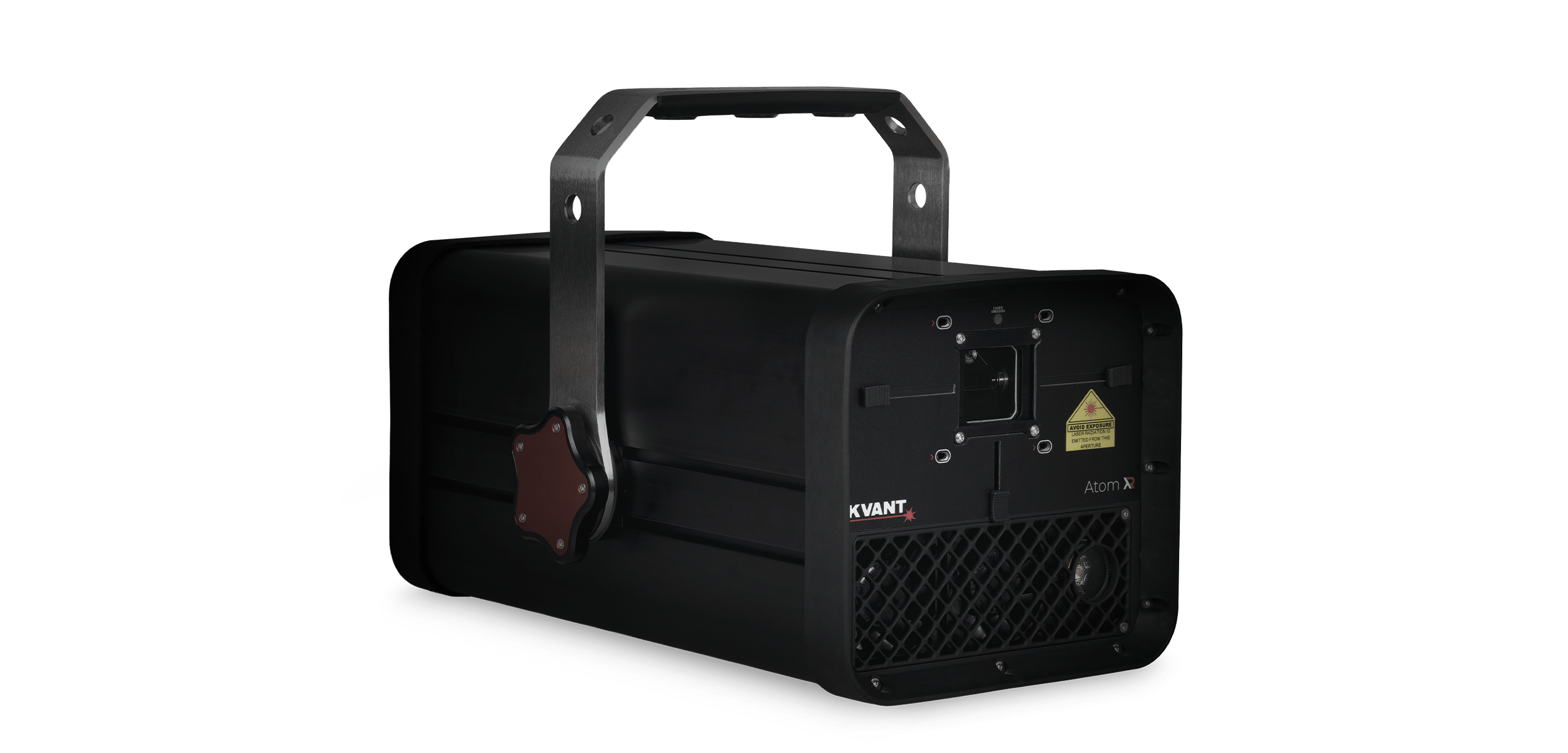

KVANT Atom XR 30 main_banner_mobile

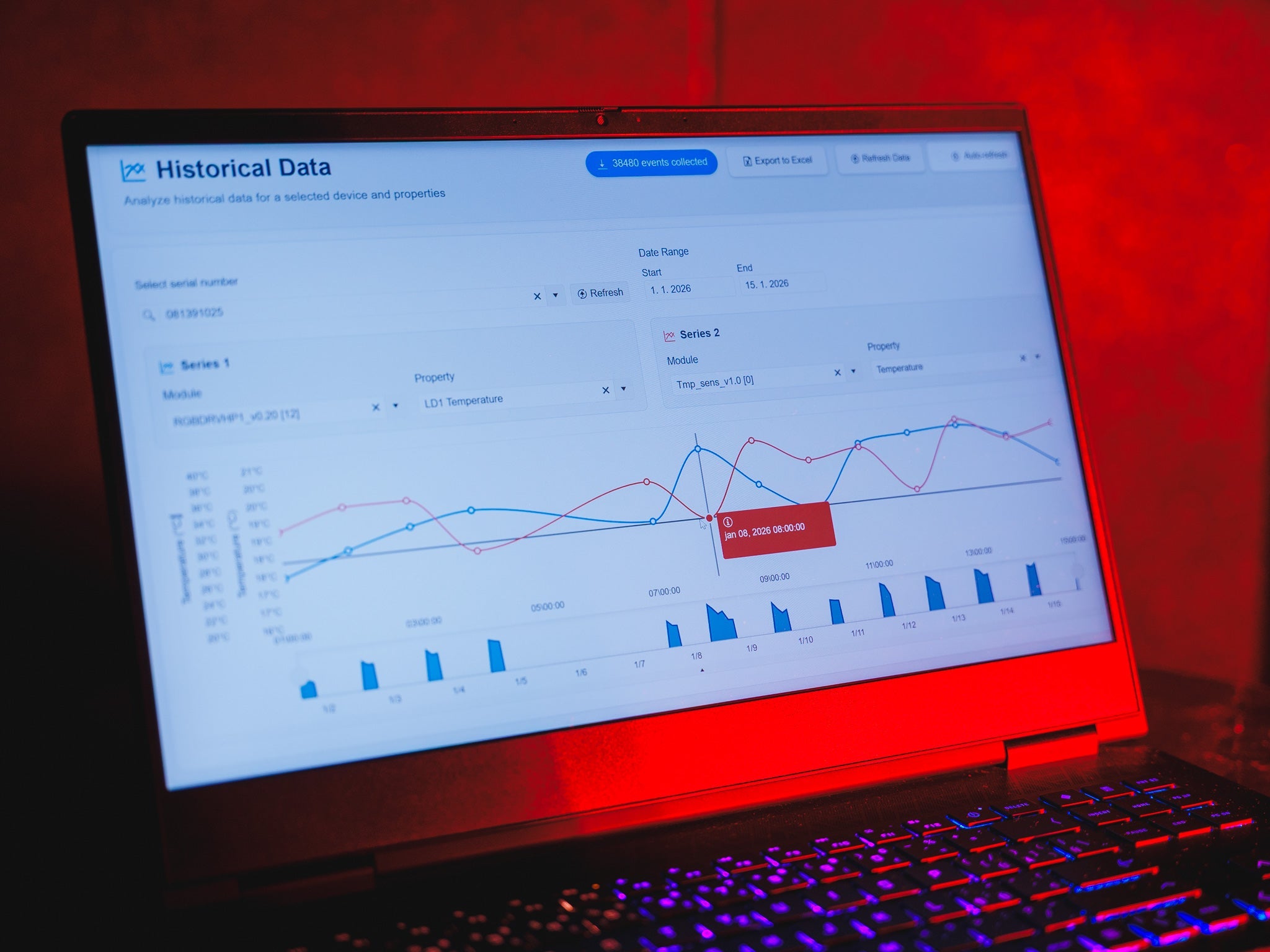

Telemetry = 100% control

A powerful online telemetry reading tool provides historical and real-time data, including serial number, location, ON/OFF status, tilt, running hours, and much more.

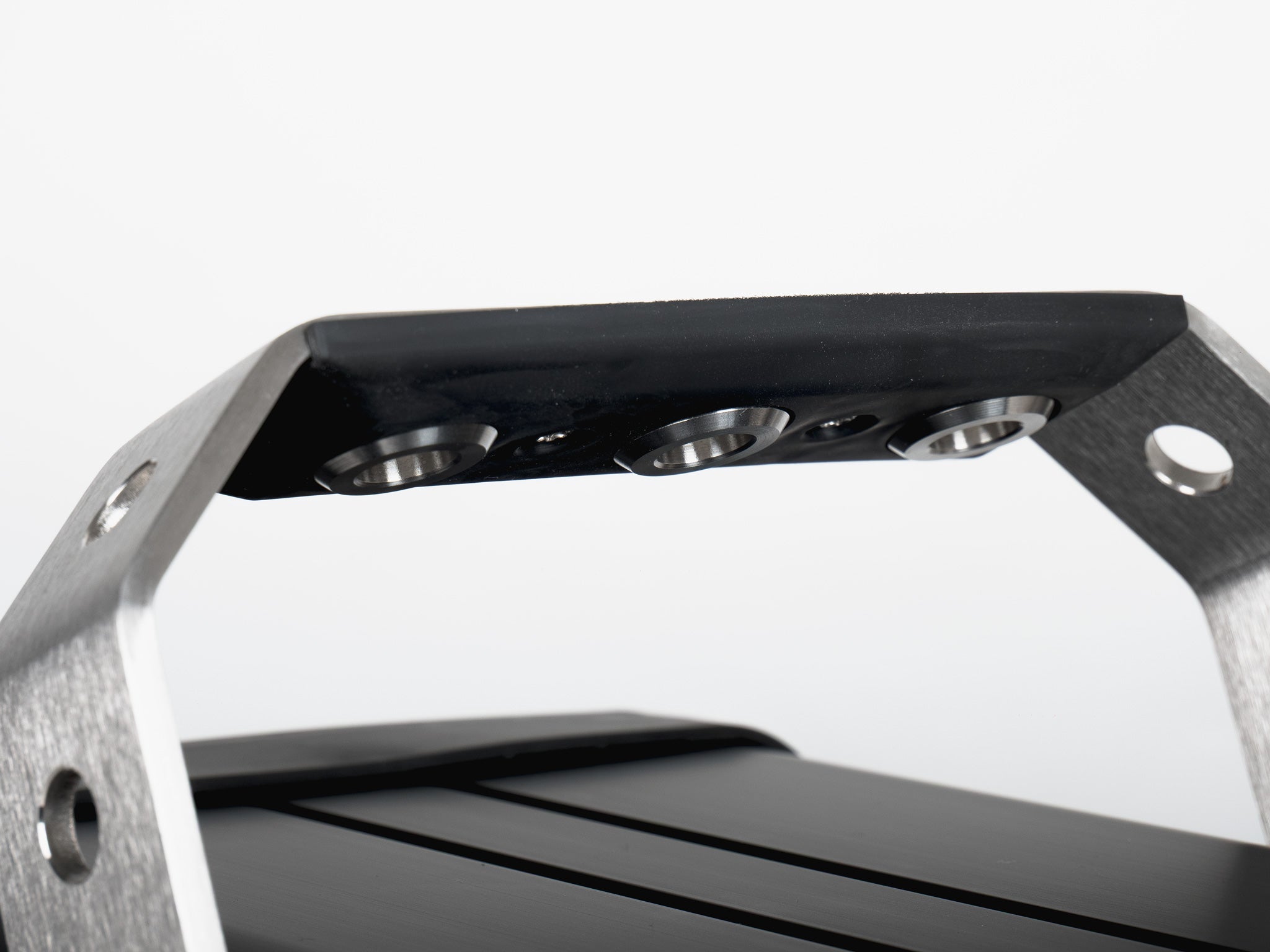

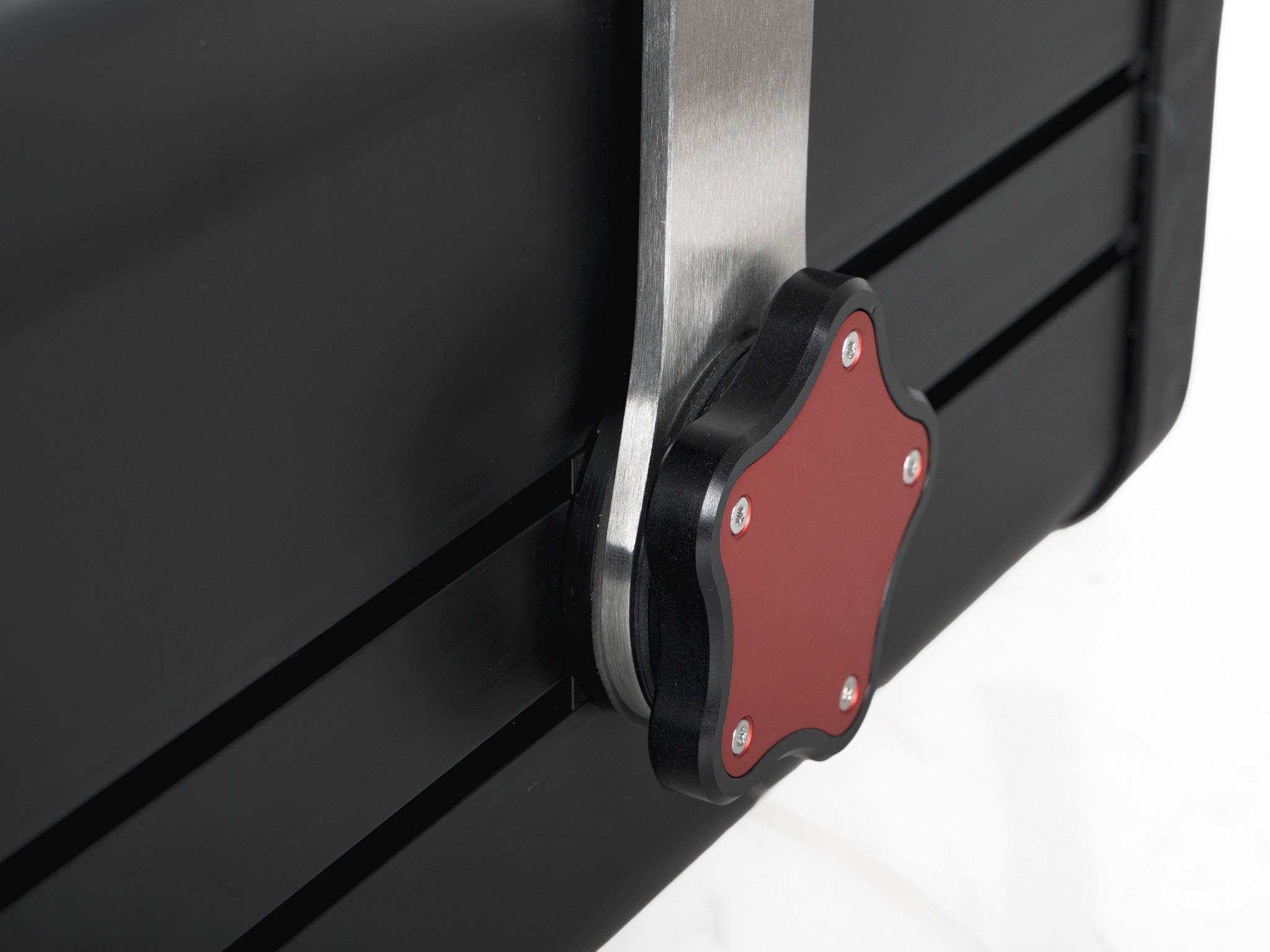

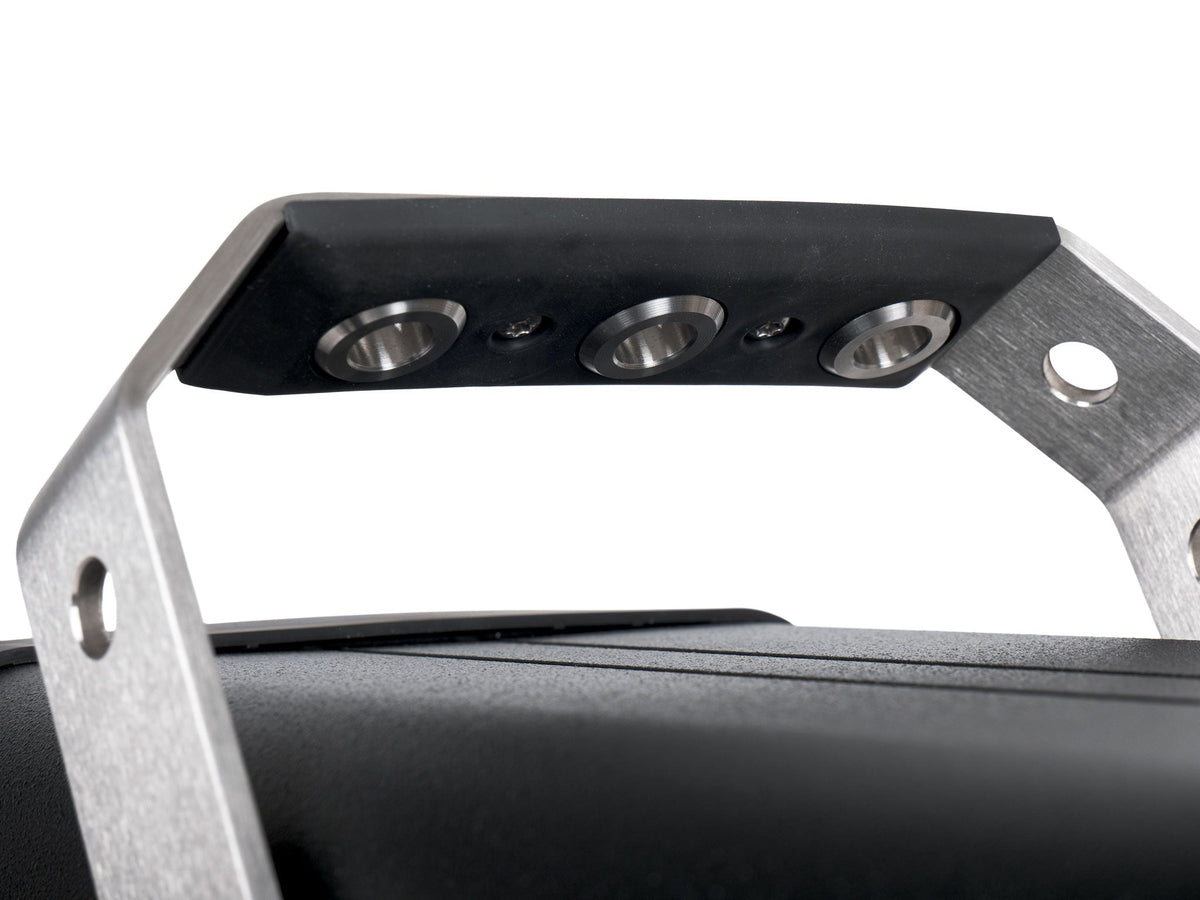

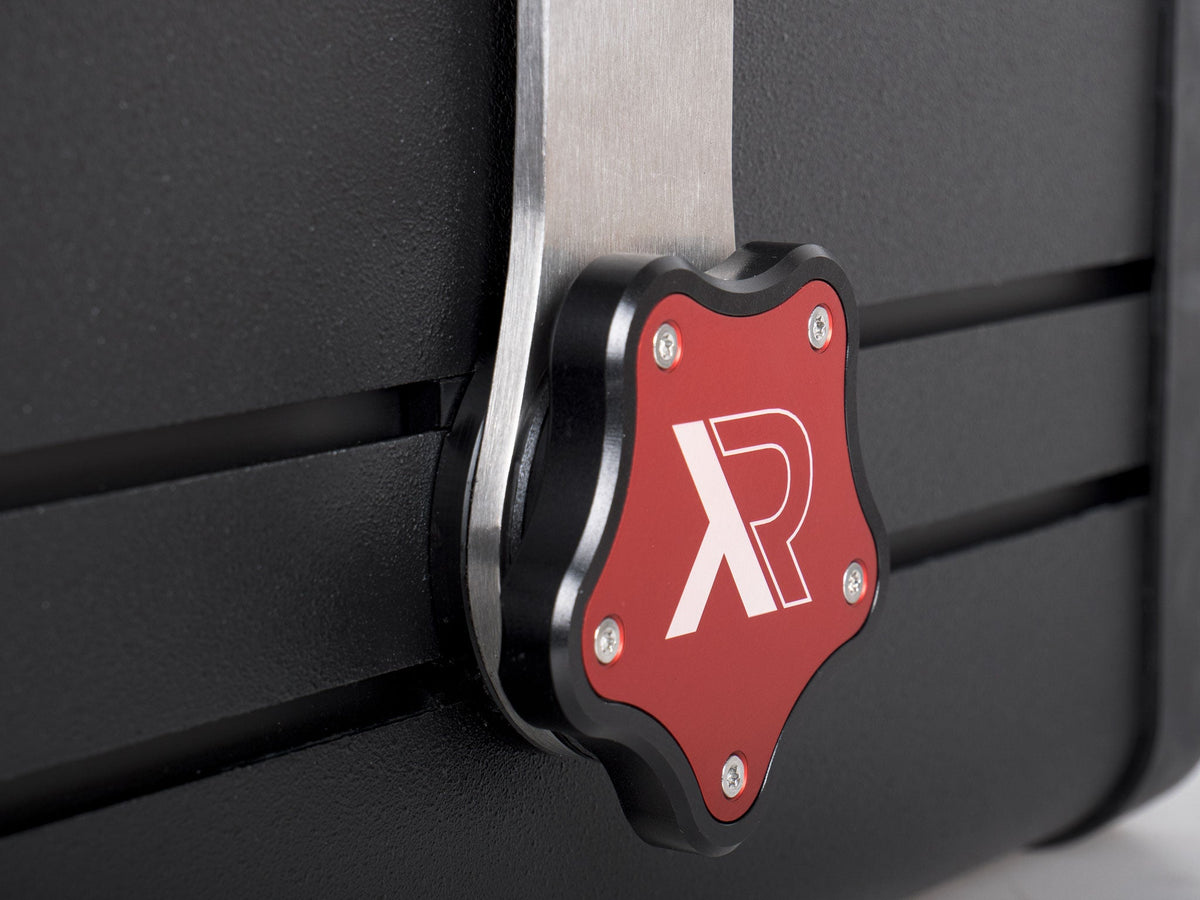

Mounting Bracket

A 360-degree swivel-sliding mounting bracket with a robust fastening mechanism enables comfortable handling and flexible and secure positioning.

New RGB module

The new RGB laser module architecture is highly resistant to colour misalignment. Under normal circumstances, the colours will never get out of alignment.

30 watts

RGB OUTPUT

Only 14 kg

COMPACT & IP65

SUPERB

VALUE FOR MONEY

Overview Specifications Downloads
Contact Us
Request A Quote
Price on request
Atom XR 30 watt RGB laser projector_1

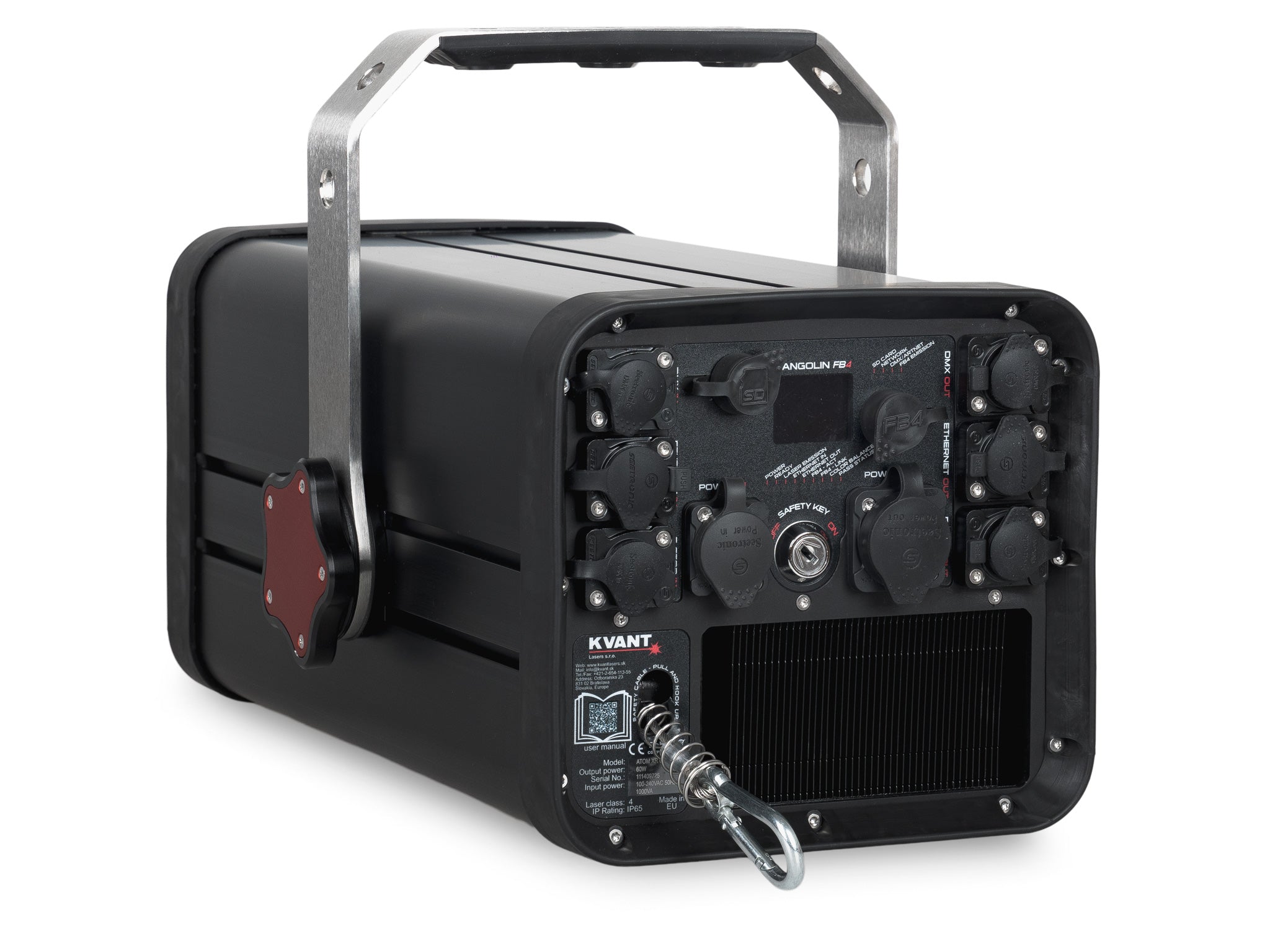

Atom XR 30 watt RGB laser projector_3
Atom XR 30 watt RGB laser projector_5

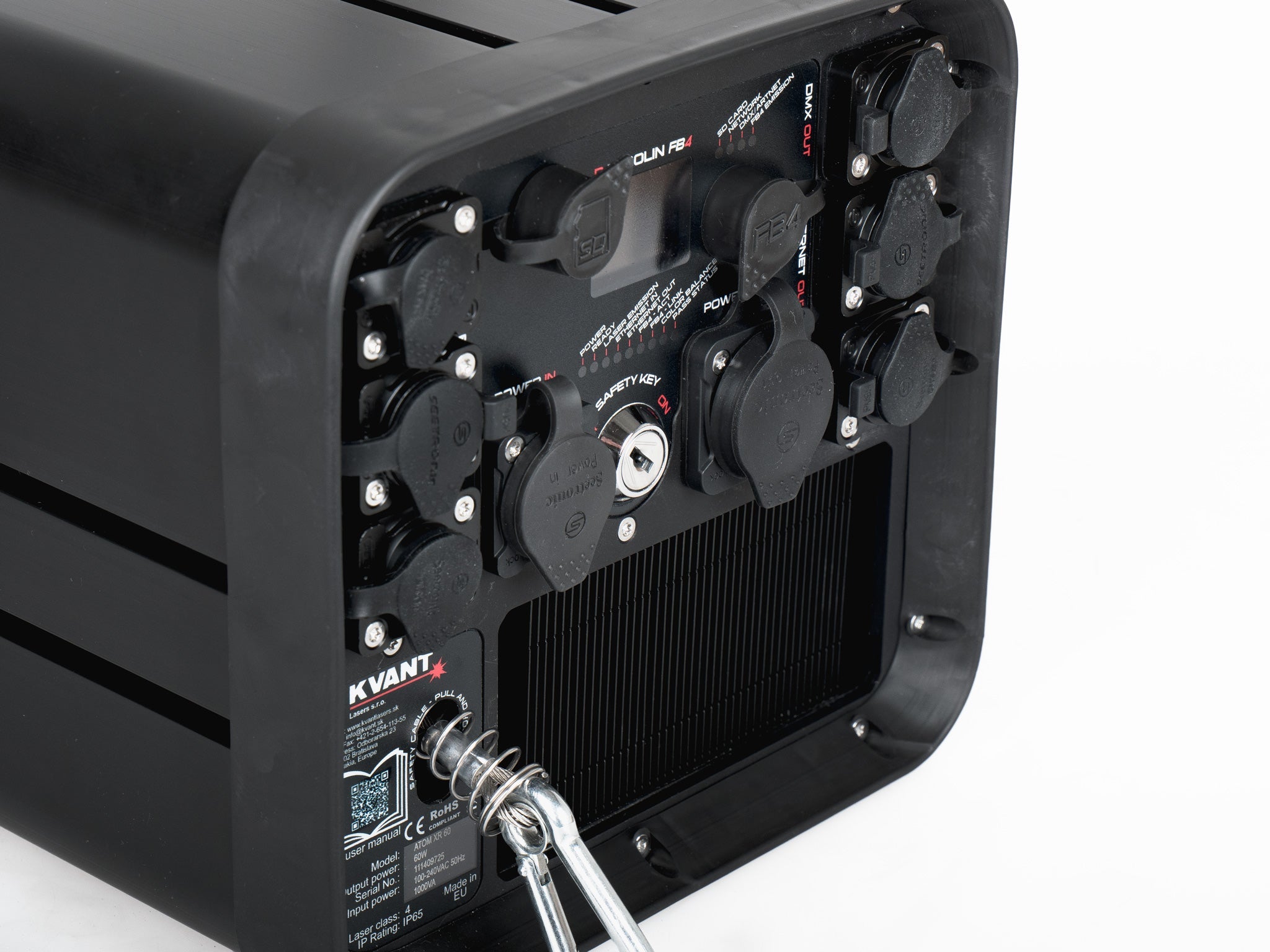

Atom XR 30 watt RGB laser projector_6
Atom XR 30 watt RGB laser projector_7

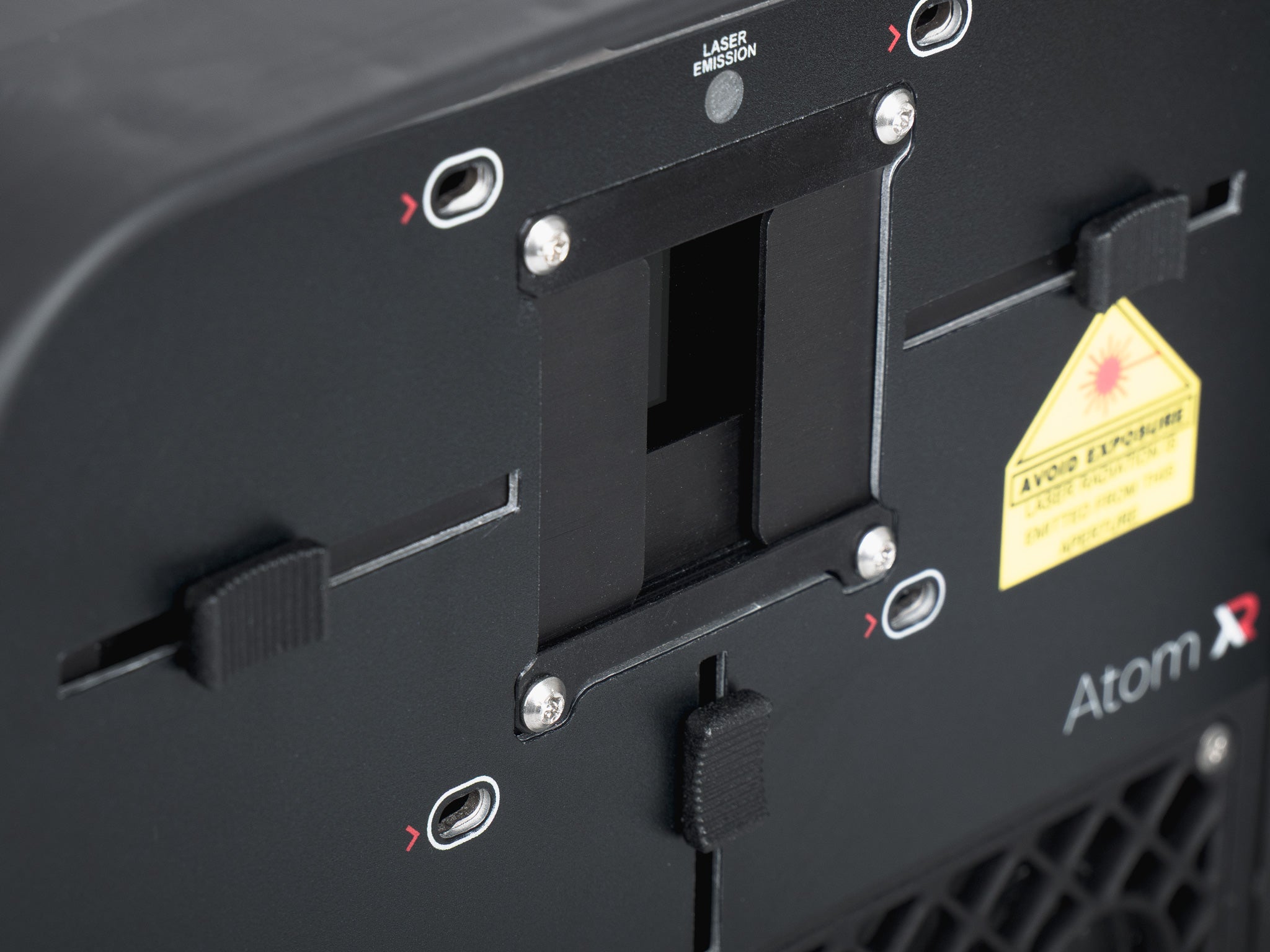

Atom XR 30 watt RGB laser projector_9

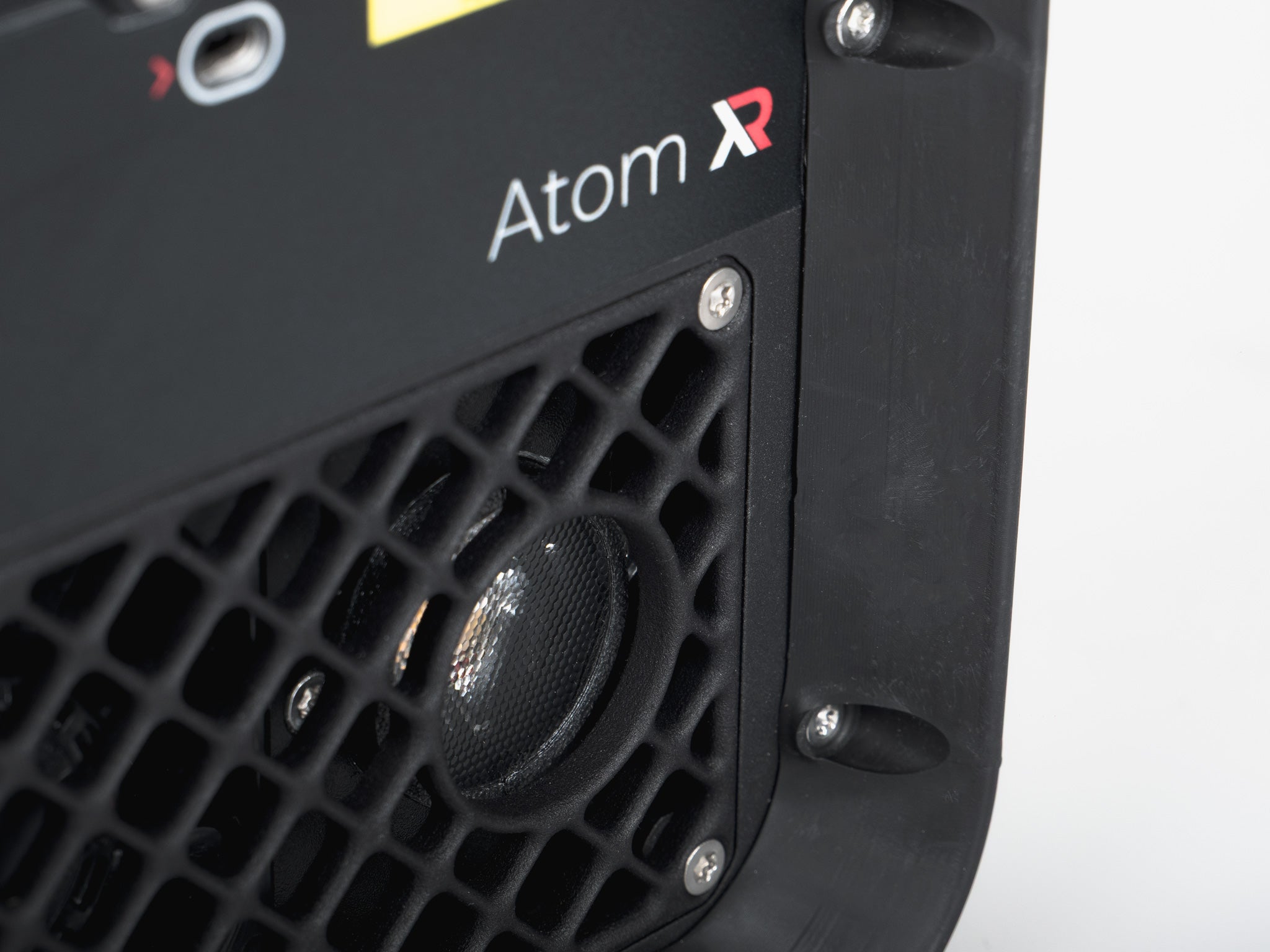

Atom XR 30 watt RGB laser projector_10

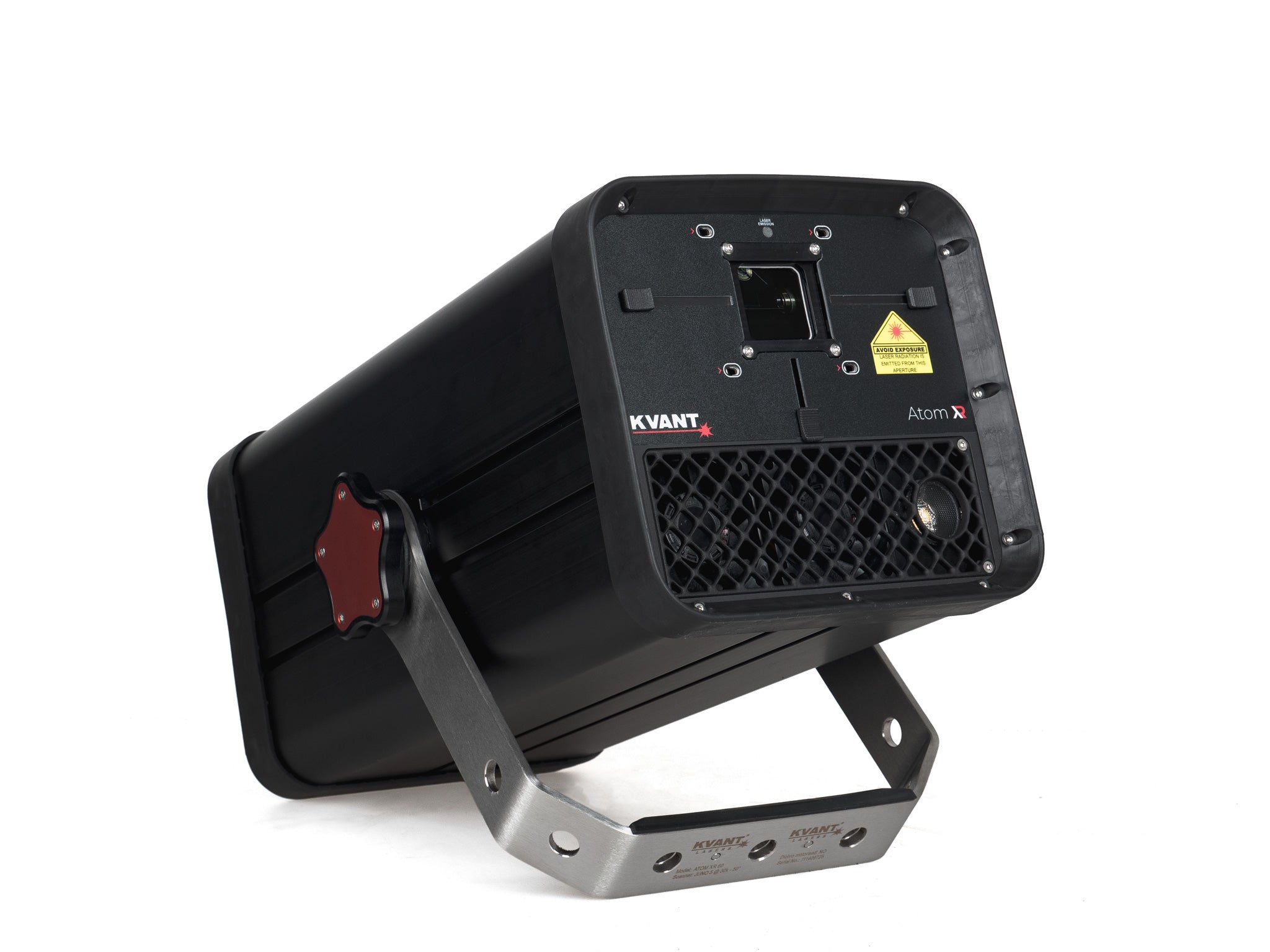

Atom XR 30 watt RGB laser projector_11

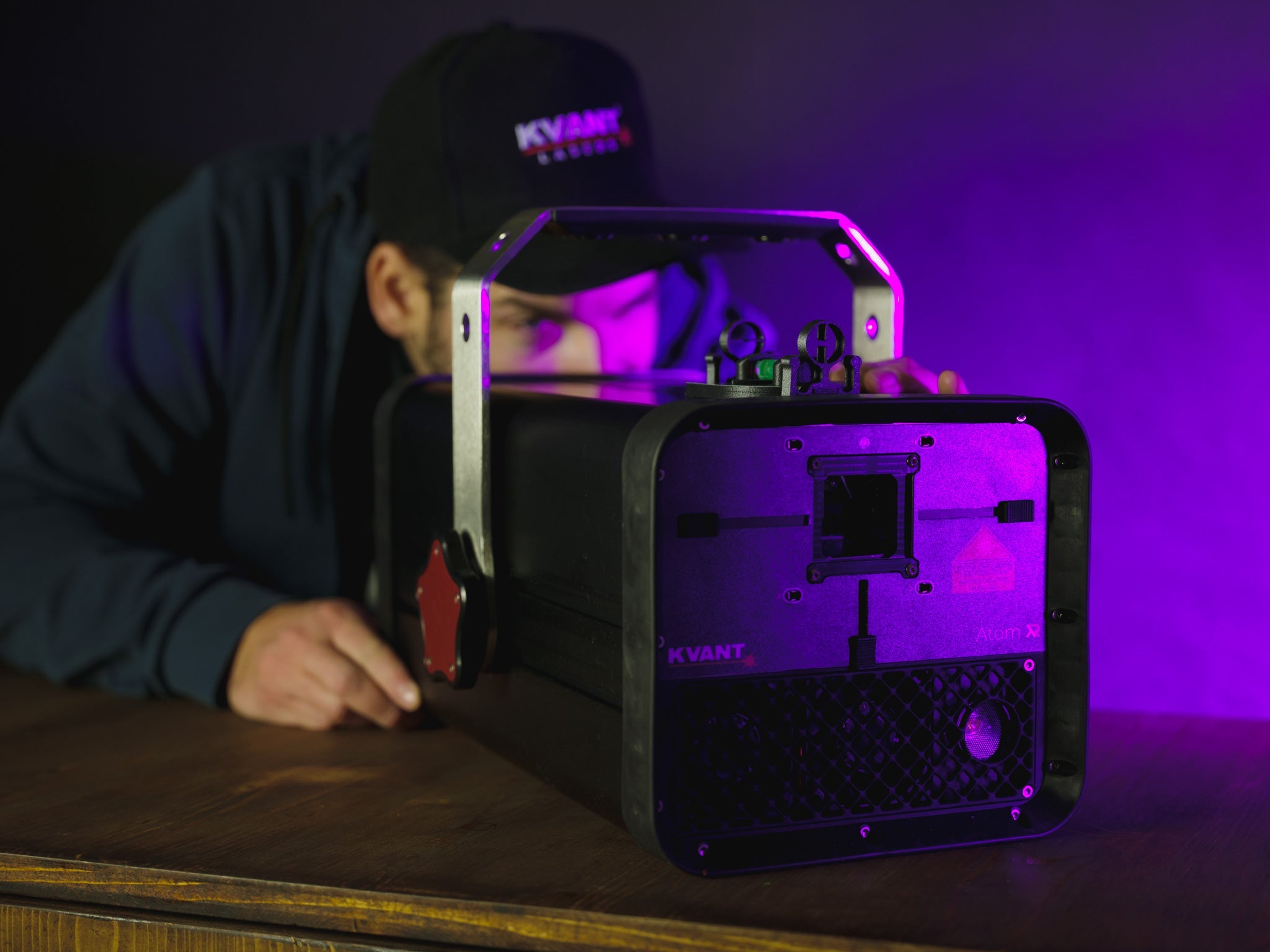

Atom XR 30 watt RGB laser projector_12

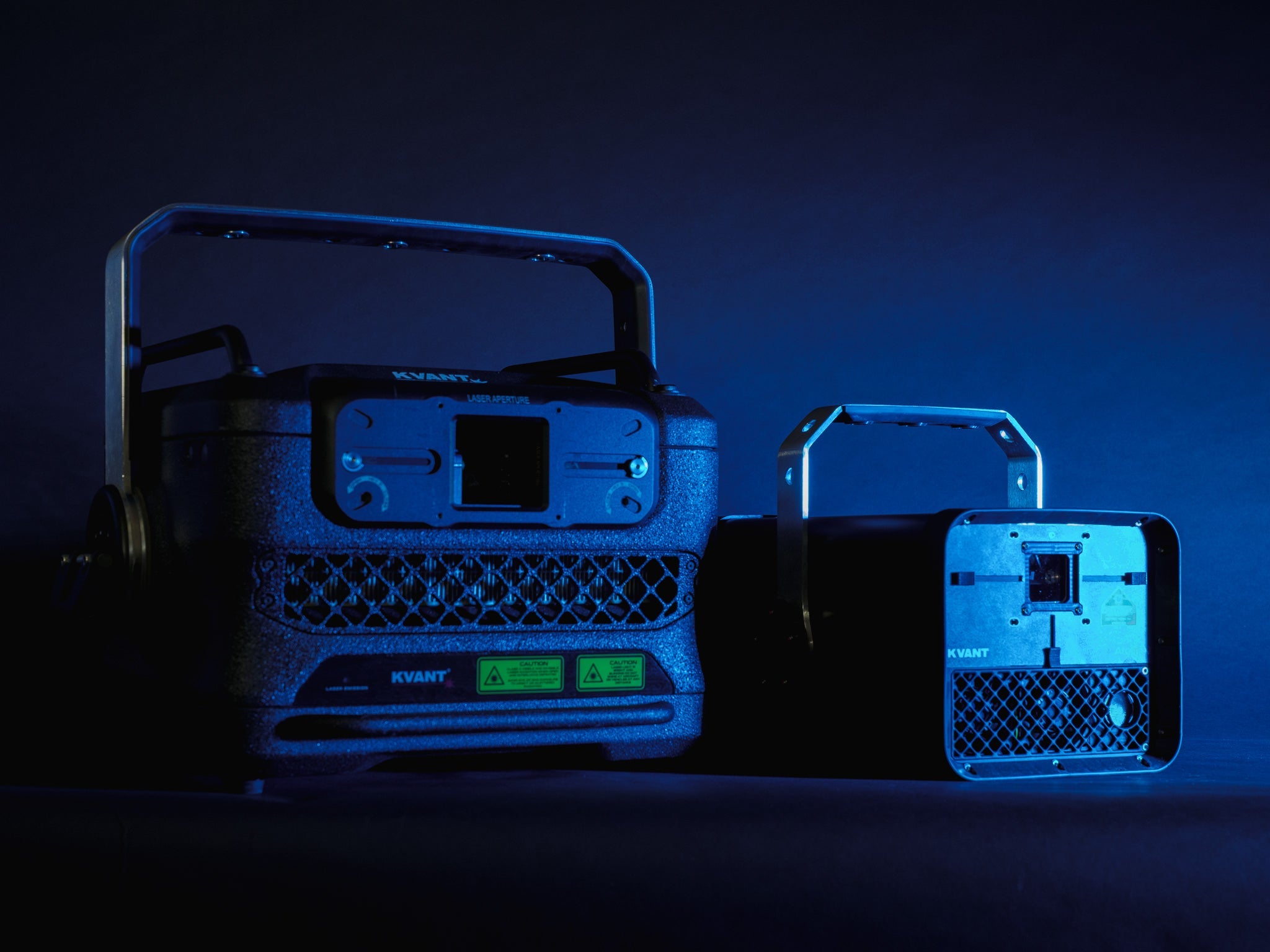

Atom XR 30 watt RGB laser projector_13

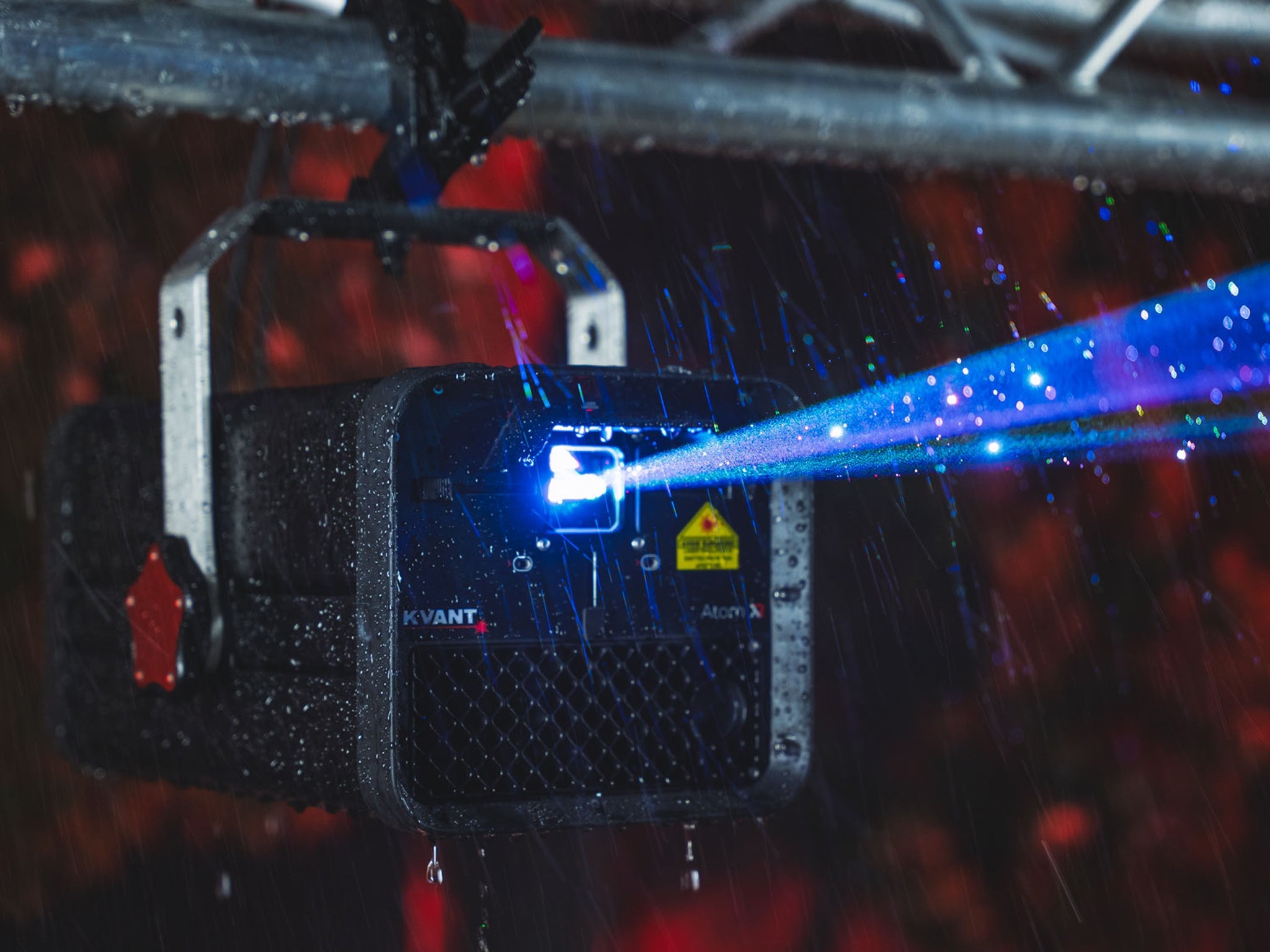

Atom XR 30 watt RGB laser projector_14
Atom XR 30 watt RGB laser projector_16

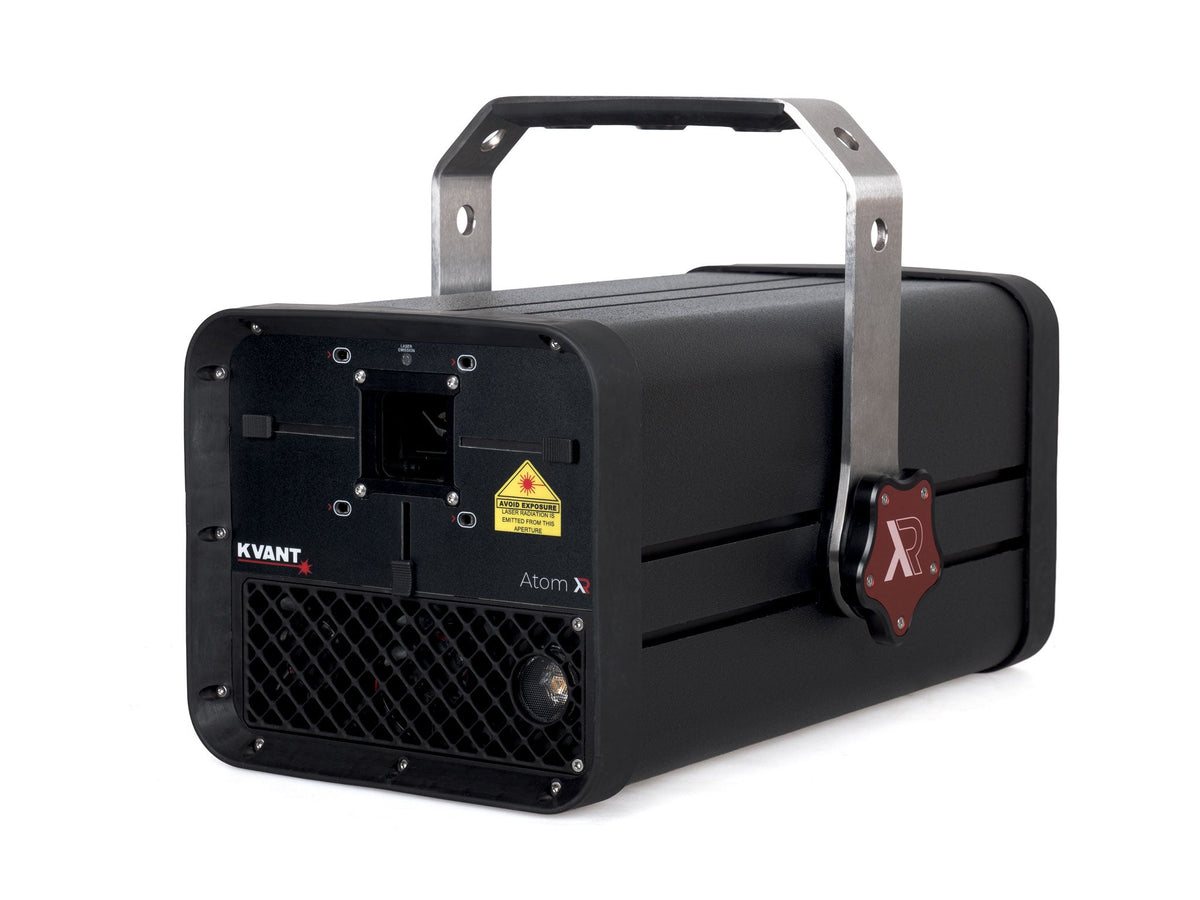

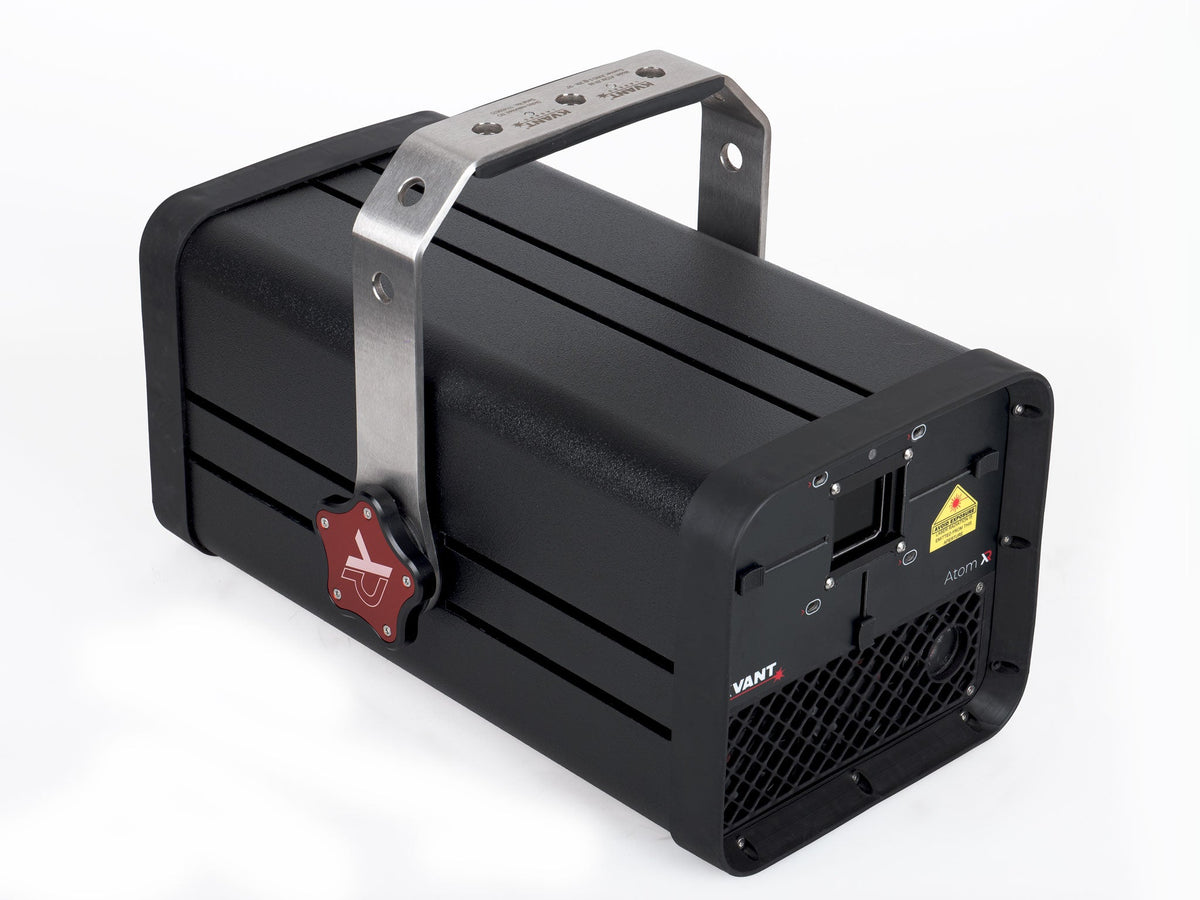

Atom XR 30

Designed from scratch utilising only the best of our technology and knowledge, following customers’ needs and wishes, and adding a pinch of Kvant’s magic, the Atom XR is the only laser projector you will ever need for 99% of all shows.

It is compact and light, 100% made in Slovakia, and with no corners cut.

The XR comes with laser modules and a cooling structure built on a new state-of-the-art architecture.

It’s fitted with precise Juno scanners, an FB4 control interface, aperture masking plates, a 360-degree swivel-sliding mounting bracket, a retractable safety rope, and a device stage locator.

The best bit is the built-in multilevel telemetry, which offers instant online access to device data such as serial number, location, on/off status, temperatures of various subsystems, usage times, tilt, and much more. This gives you total control over your equipment.

Atom XR Range Introduction

Atom XR 30 specification table

Source | IP-rating | Type:

Semiconductor laser diode | IP65 | Full-colour RGB laser projector

Suitability:

Outdoor laser displays [atmospheric, abstract, text, animations]

System control:

FB4-SK [Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console or Autoplay]

Compliant with:

EN 60825-2

Weight [kg]:

14

Size [WxHxD, mm]:

209 x 194 x 408

Guaranteed opt. output

30 watts

Installed modules R | G | B [W]:

7 | 10 | 13 *note A

Wavelengths [nm, ±5nm]:

638 | 525 | 455

Beam size [mm]:

10 x 7

Included in the package

Atom XR laser projector_icon

Laser projector

Included in the package_KVANT AC power cable_icon

AC power cable

Included in the package_Kvant Ethernet cable_icon

Ethernet cable

Included in the package_Kvant Emergency STOP with XLR cable_icon

E-STOP with XLR cable

Included in the package_Kvant interlock connector_icon

Interlock [US only]

Included in the package_Kvant Heavy duty flight case_icon

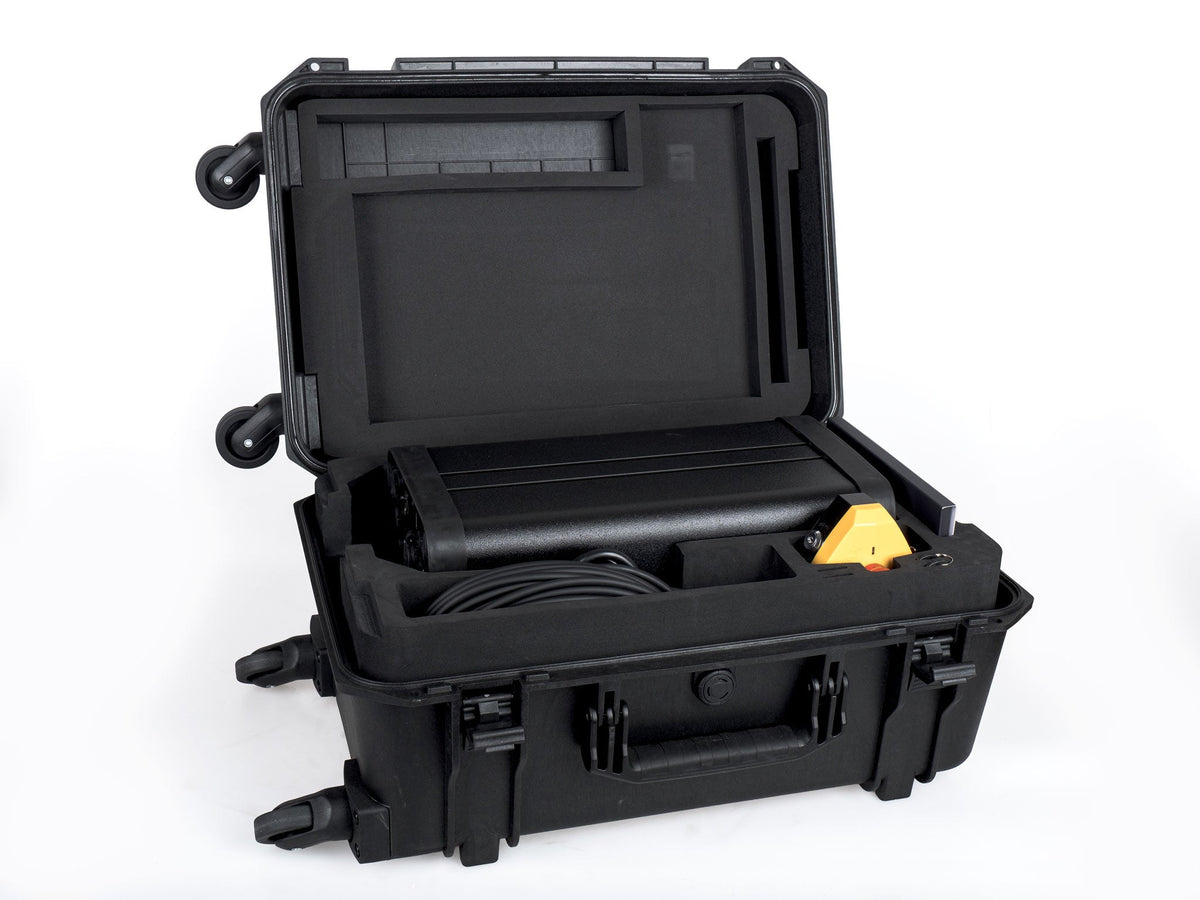

Heavy-duty flight case

Included in the package_Kvant laser safety keys_icon

Safety keys

Included in the package_Kvant USB drive with User manual_icon

USB drive with Manual

Included in the package_Kvant USB drive with User manual_icon

QC certificate

Included in the package_Kvant FREE Pangolin QuickShow laser control software_icon

Free QuickShow

Aiming piece with a spirit level_icon

Aiming piece with a spirit level

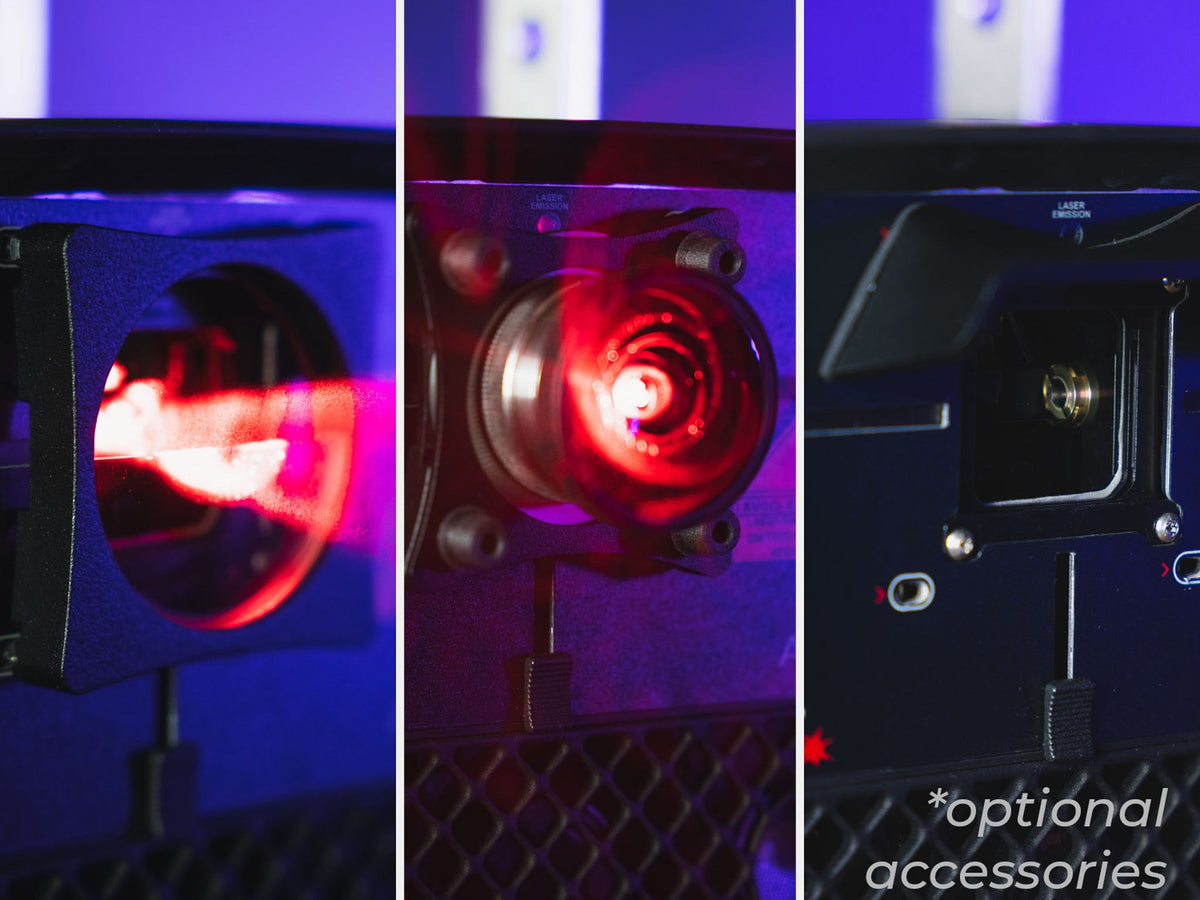

Selection of accessories

Safety Scan Lens bracket for enhanced laser safety_1
Safety Scan Lens bracket Sale priceFrom £67.00
Aperture Elements Protector for KVANT ATOM XR_1
Aperture Elements Protector Sale price£112.00
DiscoScan 2.0 Lens bracket for 180 degrees laser scanning_1
DiscoScan 2.0 Lens bracket Sale priceFrom £91.00
Kvant Lasers - heavy-duty flight case for laser projectors Atom, Beam brush, Burstberry, Clubmax, Spectrum_1
Heavy-duty flight case Sale priceFrom £85.00

Downloads

Atom XR 30 - Product Specifications
Atom XR series - User Manual
Atom XR series - Technical Drawings
